Fixturing Plates
Fixturing Plates
The versatile plate can be used as a fixturing element, or as a link to connect two tables together.

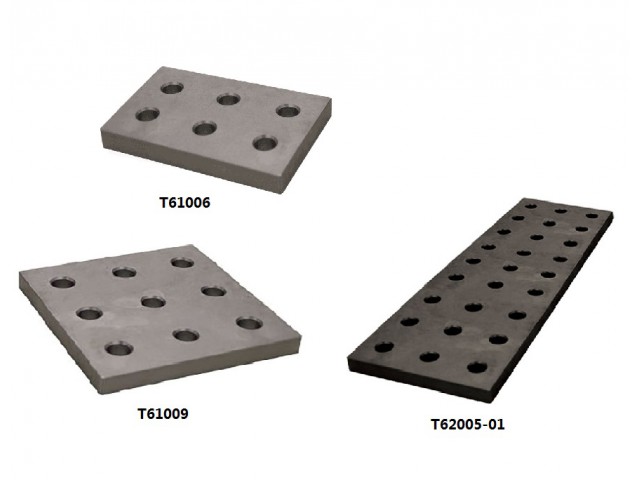

| Part No. | Material / Finish | Description | Plate Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| T61006 | Standard | 100 mm x 160 mm Fixturing Plate, 6 holes | 16 | 1.9 |
| T61009 | 150 mm x 160 mm Fixturing Plate, 9 holes | 2.8 | ||
| T62005-01 | Nitrided | 500 mm x 160 mm Fixturing Plate | 9.0 |
6 - Hole Fixturing Plate

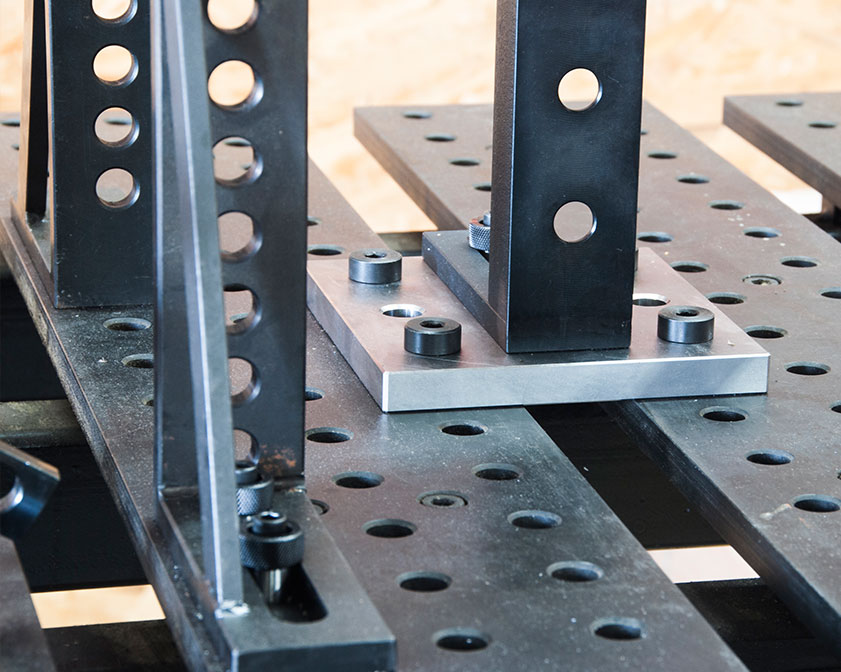

This 6-hole Fixturing Plate is a versatile base for the set-up of fixturing elements.

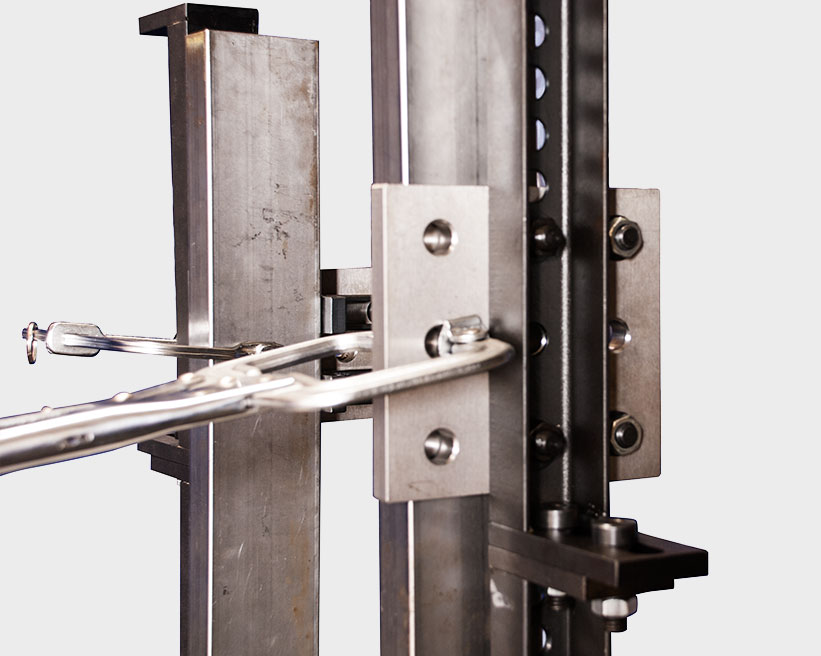

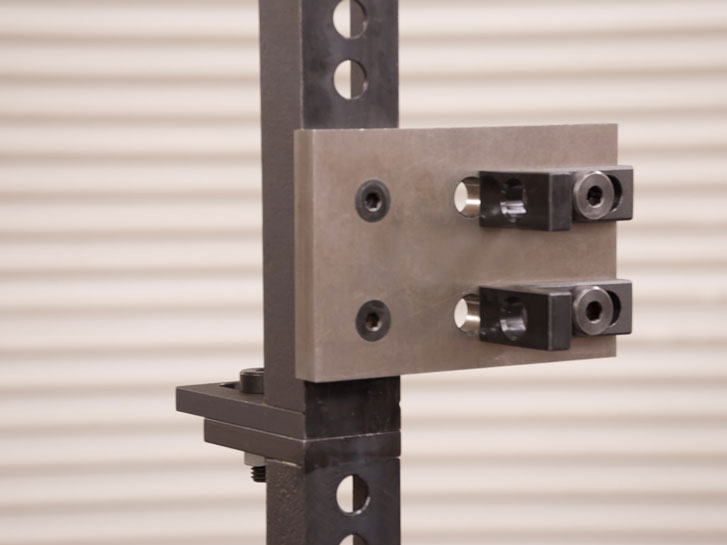

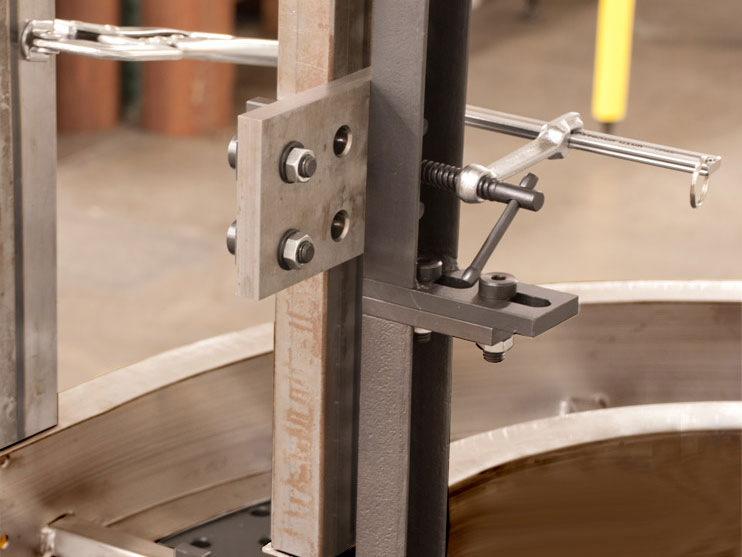

Use the 6-hole Fixturing Plate in any orientation to locate, stop, and position stock to be clamped.
9 - Hole Fixturing Plate
This 9-hole plate is a versatile base for the set-up of fixturing elements.
Use the 9-hole Fixturing Plate in any orientation to locate, stop, and position stock to be clamped.

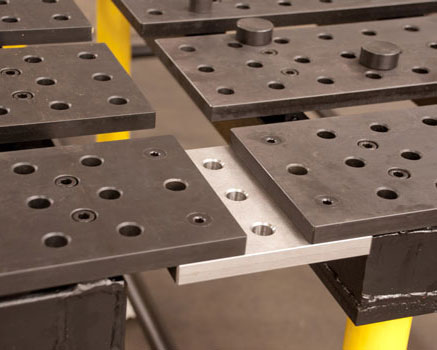

Use the 9-hole Fixturing Plate to join BuildPro® Tables together, side by side, or end to end.
