Leg Braces
Leg Braces

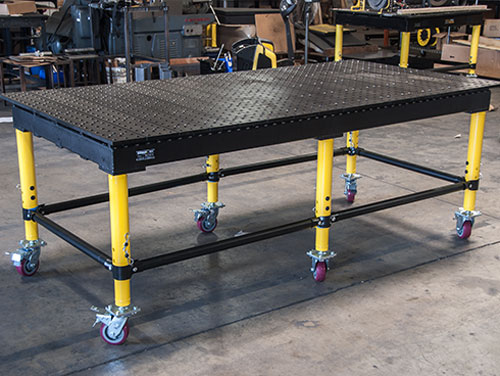

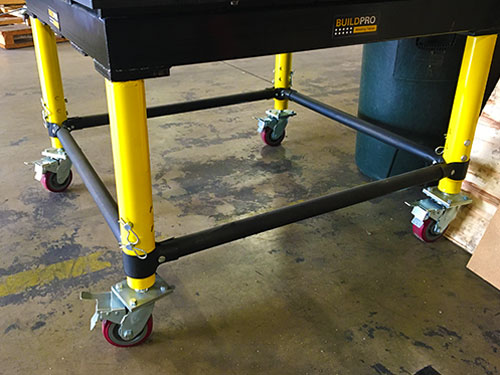

PRODUCT DESCRIPTION:Leg Braces reinforce and stabilize the BuildPro® table. Ideal as a base for creating shelves. Place a metal plate or wooden board on the brace framework. Create one, or multiple level shelves with additional Leg Brace Assembly.
| Part No. | Leg Brace Assembly for | Weight kg) | ||||
|---|---|---|---|---|---|---|
| Table | Table Size (mm) | Legs Type | Leg Dia. (mm) | |||
| TMLB2630 | MAX | 2,550 x 1,2504 | Heavy Duty | 76 | 11.8 | |
| TMLB2030 | MAX | 1,950 x 1,250 | Heavy Duty | 76 | 10.8 | |
| TMLB1203 | MAX | 1,200 x 1,200 | Heavy Duty | 76 | 6.8 | |
| TMLB25 | Slotted | 2,560 x 1,250 | Standard | 57 | 11.3 | |
| TMLB20 | Slotted | 1,960 x 1,150 & 1,960 x 1,000 | Standard | 57 | 8.6 | |
| TMLB12 | Slotted | 1,160 x 1,150 & 1,160 x 1,000 | Standard | 57 | 6.4 | -- |
| TMLB06 | Slotted | 560 x 1,000 | Standard | 76 | 5.0 | |
| TMLBR20 | Slotted | 1,960 x 1,150 & 1,960 x 1,000 | Adjustable | 76 | 10.0 | |
| TMLBR12 | Slotted | 1,160 x 1,150 & 1,160 x 1,000 | Adjustable | 76 | 6.8 | |
| TMLBR06 | Slotted | 560 x 1,000 | Adjustable | 76 | 5.9 | |
Application

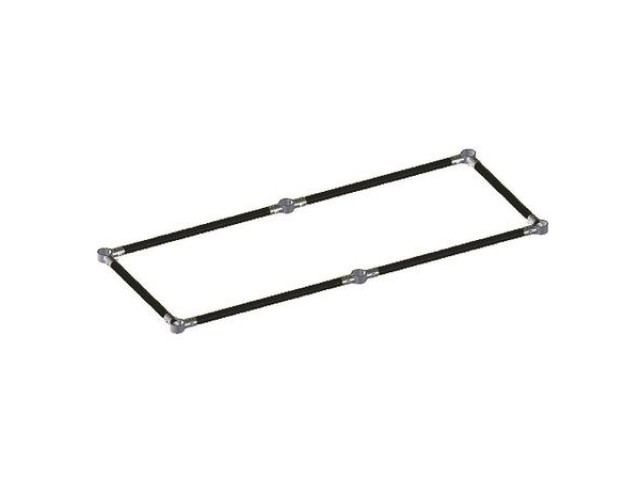

Leg Brace assembly includes the: Braces, Corner Rail Clamps, and Cross Link Tubings.
Solid construction for additional strength.
