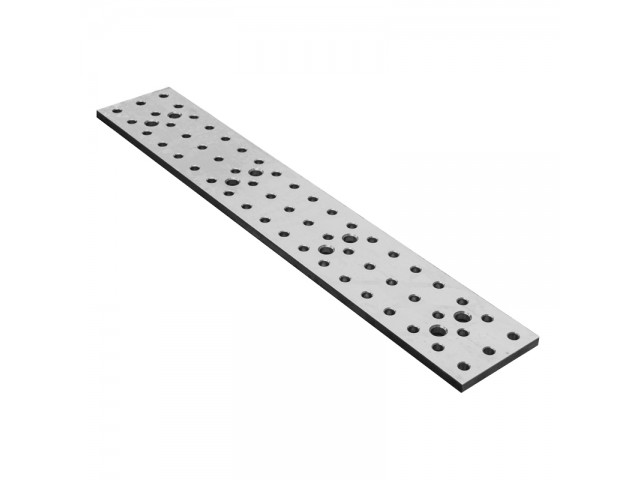

Individual Reversible Table Plates
Price: RM0.00
Individual Reversible Table Plates
Your new reversible BuildPro® Table plates are self-locating.
When the surface of your BuildPro® Table plates show signs of wear, turn them over to provide a new work surface.

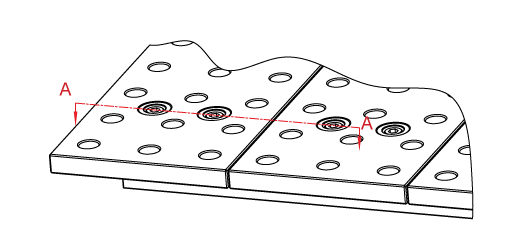

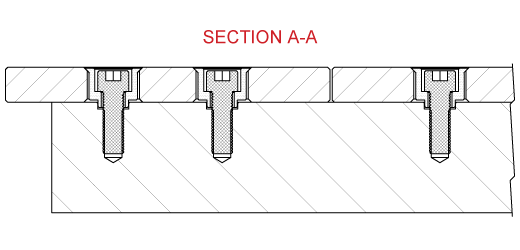

New, Patented Bushing desing allows you to remove, re-positionm re-align, and reverse the table plates!
* Mounting hardware sold separately.
| Part No. | Finish | Dimension (mm) | Plate Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| TM62010SV-01 | Standard | 1,000 x 160 | 16 | 18 |
| TM62011SV-01 | 1,150 x 160 | 22 | ||
| TM620125SV-01 | 1,250 x 160 | 23 | ||
| TM61212V-01 | 1,200 x 150 | 20 | ||
| TM620125V-01 | 1,250 x 150 | 21 | ||
| TMQ62010SV-01 | Nitrided | 1,000 x 160 | 18 | |
| TMQ62011SV-01 | 1,150 x 160 | 22 | ||
| TMQ620125SV-01 | 1,250 x 160 | 23 | ||
| TMQ61212V-01 | 1, 200 x 150 | 20 | ||
| TMQ620125V-01 | 1, 250 x 150 | 21 |
OTHER APPLICATIONS

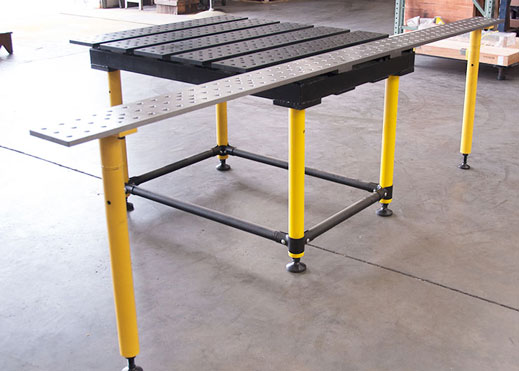

Use these Individual Plates to extend the length or width of your BuildPro® Welding Table. Attach Plates using BuildPro® Riser Blocks, or Connector Plates.
Use individual plates to extend the length or width of the BuildPro™ Table.
BuildPro™ Plates are precision ground steel, .625" thick.>

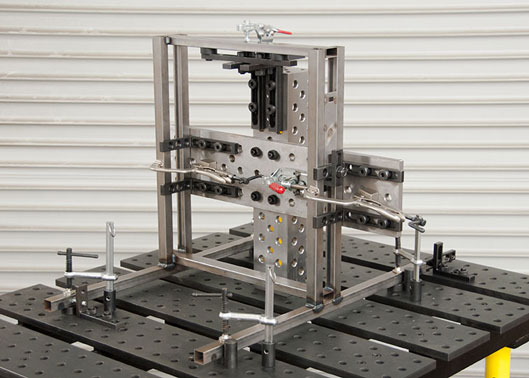

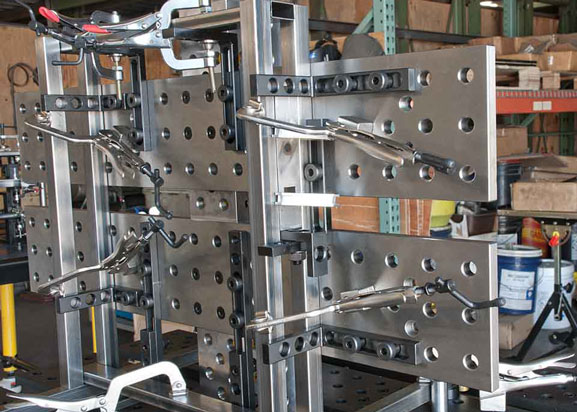

BuildPro's plate, slot, and hole system provides unlimited options in fixturing.
