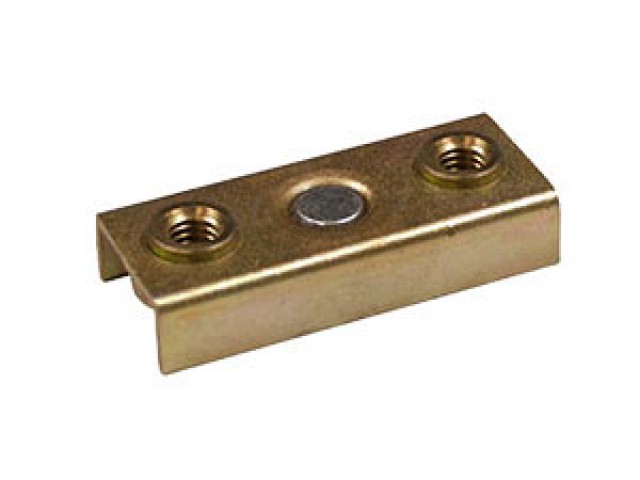

Threaded Adaptors
Threaded Adaptors - UNIQUE

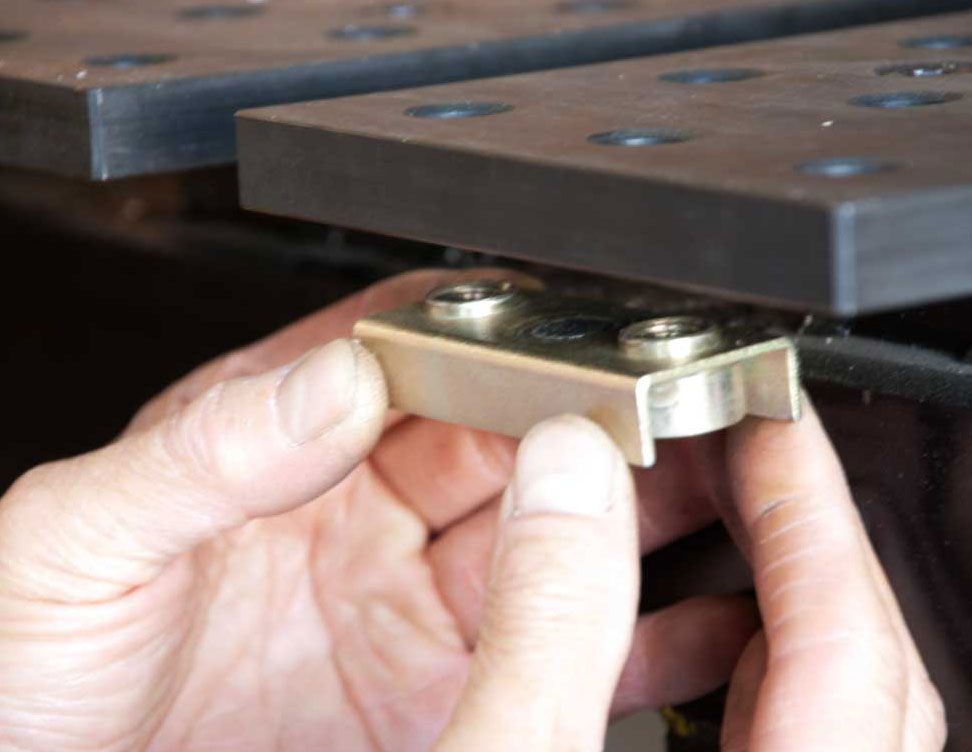

PRODUCT DESCRIPTION:Convert any hole in the table into a threaded hole. Place the Adapter in position beneath the tabletop, in alignment with table holes. Magnets hold threaded adapter in place.

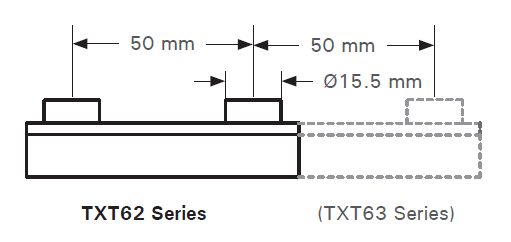

| Part No. | Number of Holes | Threaded Holes | Magnets | Weight (kg) |
|---|---|---|---|---|
| TXT6203 | 2 | M8 | 1 | 0.13 |
| TXT6204 | M10 | 0.13 | ||
| TXT6205 | M12 | 0.13 | ||
| TXT6303 | 3 | M8 | 2 | 0.26 |
| TXT6304 | M10 | 0.26 | ||
| TXT6305 | M12 | 0.26 |
Model
Application

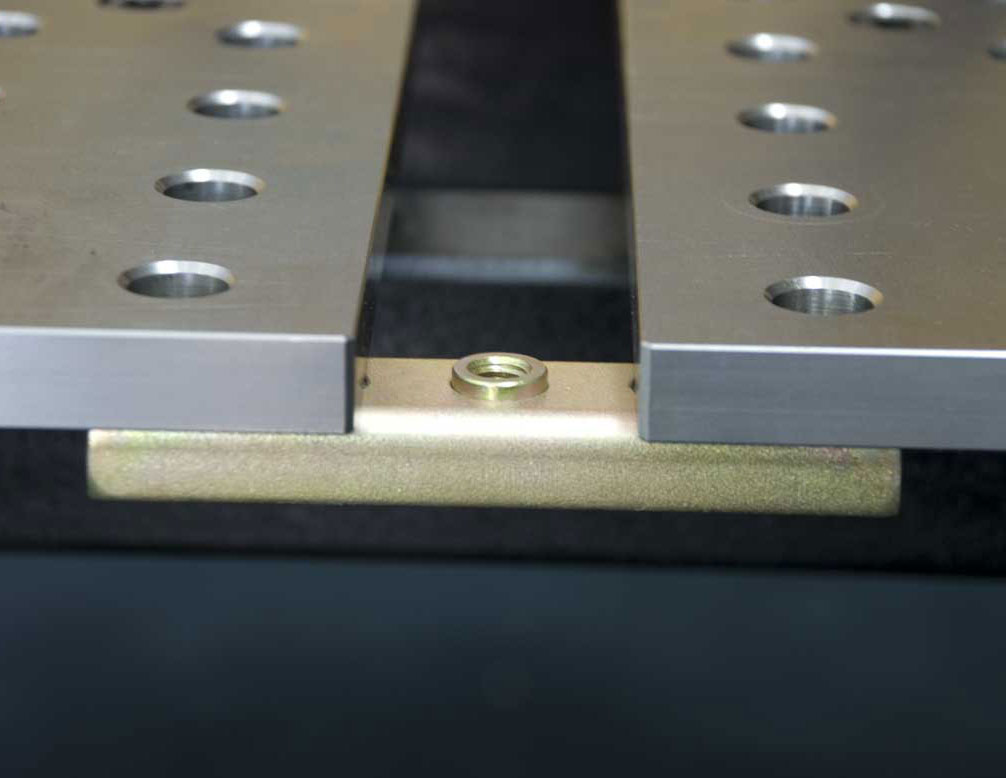

Align the Threaded Adaptor with table holes

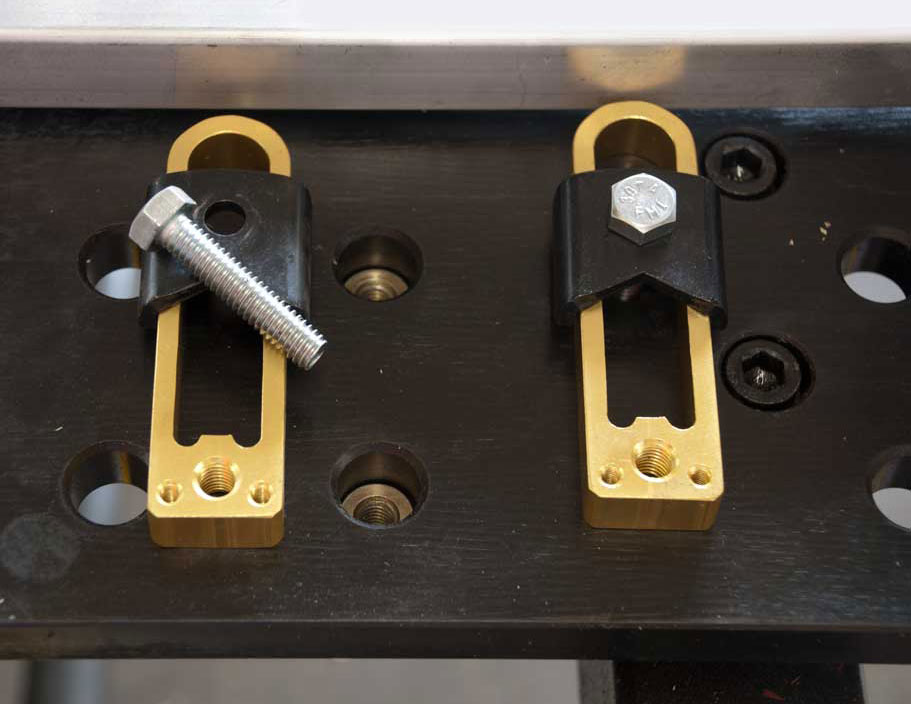

By using the Threaded Adapters, we can use a threaded screw to fasten the D-Stop Bars to the table, and we can tighten the screw from the top of the table.
Fasten a clamp element to the table, across the table slot, using the Threaded Adapter.
