Bend Rests
Bend Rests

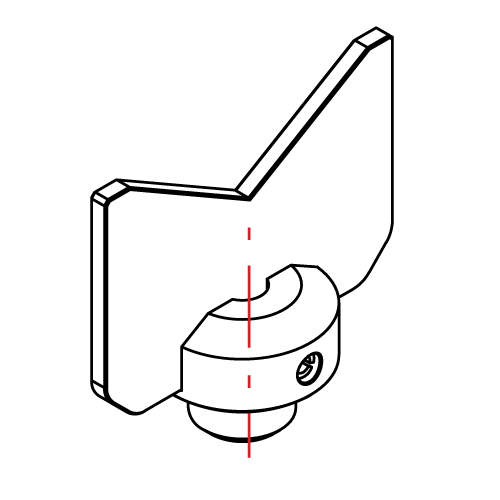

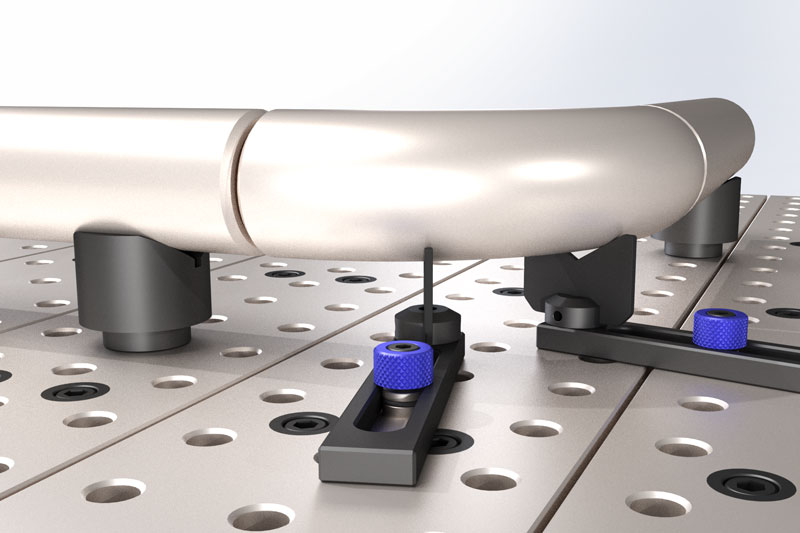

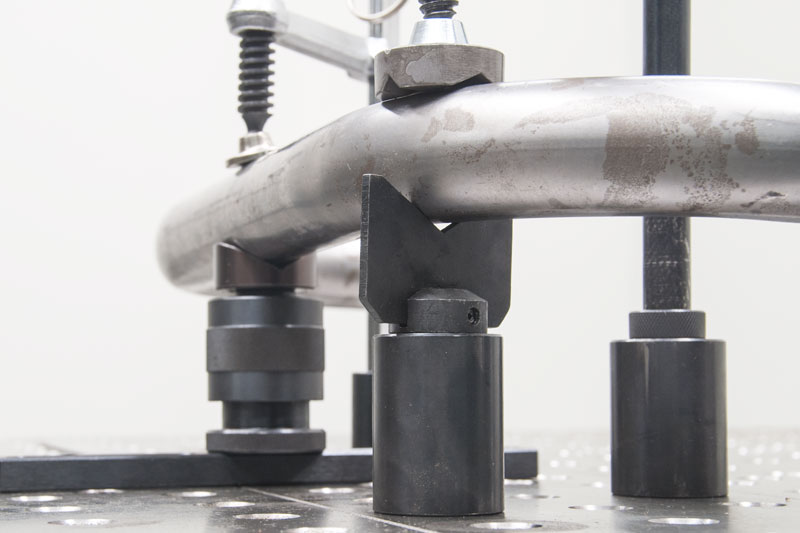

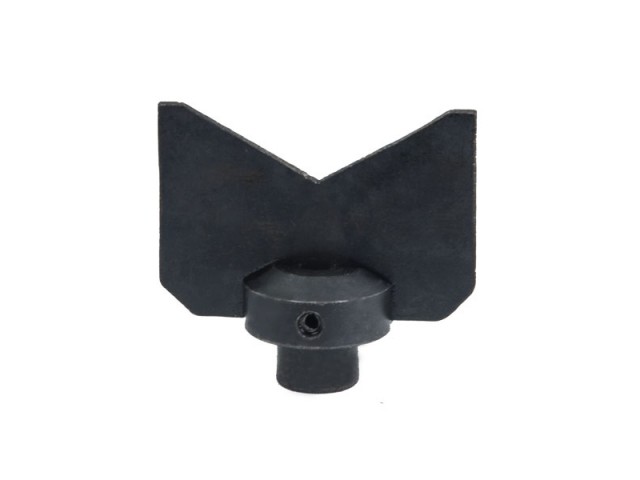

PRODUCT DESCRIPTION:The Bend Rest supports round stock at bends and elbows in fixturing, preventing lateral movement and providing clamp support.

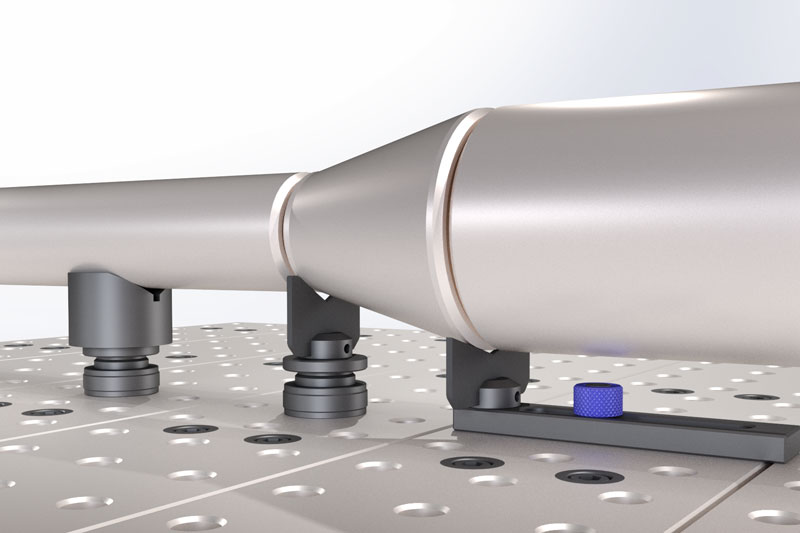

The low profile design allows use of multiple Bend Rests as needed to elevate stock, leaving ample space for clamping.

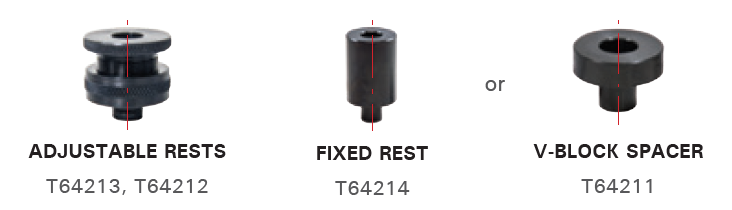

Place Bend Rests directly into any hole on the BuildPro® Tabletop, or use in combination with BuildPro® Rests to set at desired height to meet clearance or alignment requirements for each unique fixture:
Use with:

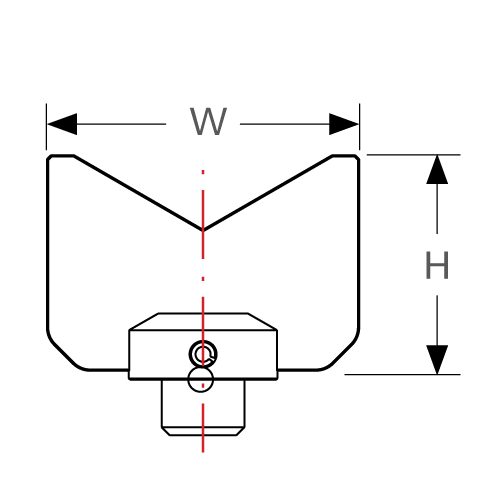

| Part No. | Angle | W x H (mm) | Max. Tube Size (mm) | Weight (kg) |
|---|---|---|---|---|
| T54320 | 120º | 40.6 x 40.68 | 63.5 | 0.2 |
| T54325 | 120º | 61 x 43 | 76 | 0.2 |
| T54330 | 150º | 81 x 35.58 | 203 | 0.2 |
