FixturePoint Welding Table
FixturePoint Welding Table

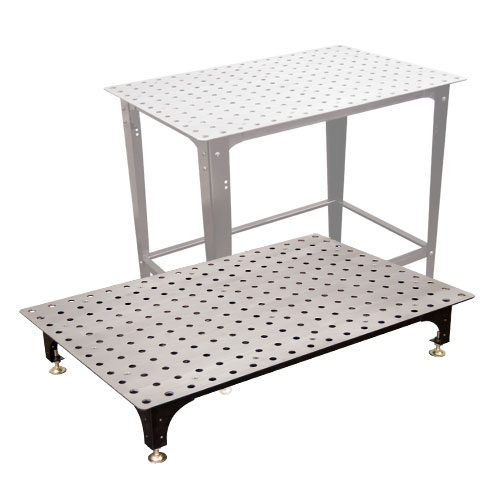

ONE Table, TWO Height Settings
An Affordable, Easy-to-Use Modular Fixturing System.
Increase work quality and productivity!
Fixture at ANY POINT on the tabletop.
| Part No. | Tabletop Height WITHOUT leg frame | Tabletop Height WITH leg frame | Holes | Grid Pattern | Tabletop Surface Dimensions | Tabletop Material Thickness | Weight |
|---|---|---|---|---|---|---|---|
| TBH90604 | 6-1/4" (158 mm) |
34" (860 mm) |
0.63" (16 mm) |
2" x 2" (50 x 50 mm) |
36" x 24" (900 x 600 mm) |
0.16" (4 mm) |
67 LBS (30 kg) |
Applications of FixturePoint Welding Table
FixturePoint Tool Kit#1

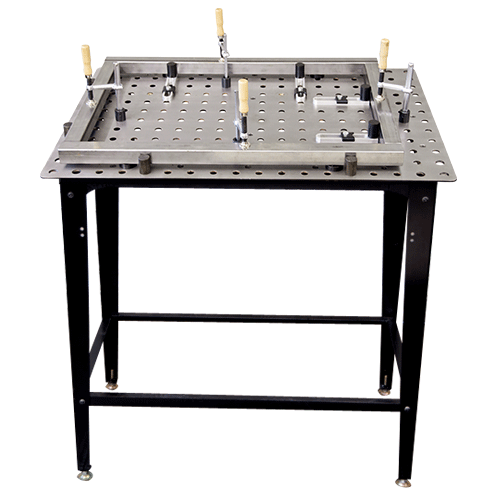

Part No. TBHK100 (TBHKM100) - Complete Modular Fixturing Kit for the set-up of 4x SQUARE Tubing frames.
TOTAL WEIGHT: 77 LBS. (35 kg)

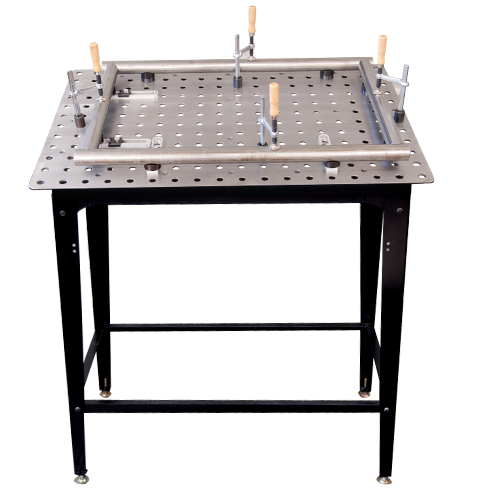

The FixturePoint System is ideal for the set-up of 2D frames. Use the FixturePoint Kits to get started right away, working comfortably, safely, and efficiently for improved work quality and productivity!
FixturePoint Clamps and Components can be inserted into the 16 mm holes on the 36" x 24" (900 x 600 mm) tabletop for complete flexibility in Modular Fixturing.
FixturePoint Tool Kit#2

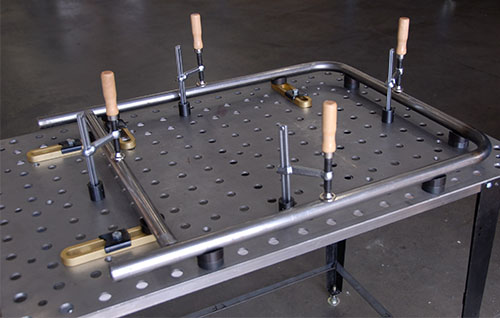

Part No. TBHK200 (TBHKM200) - Complete Modular Fixturing Kit for the set-up of 4x ROUND Tubing frames.
TOTAL WEIGHT: 73 LBS. (33 kg)
The FixturePoint System is ideal for the set-up of 2D frames. Use the FixturePoint Kits to get started right away, working comfortably, safely, and efficiently for improved work quality and productivity!
FixturePoint Clamps and Components can be inserted into the 16 mm holes on the 36" x 24" (900 x 600 mm) tabletop for complete flexibility in Modular Fixturing.
Complete Kit includes:
TBH36244 (TBH90604)
WEIGHT: 67 LBS. (30 kg)
QTY: 1

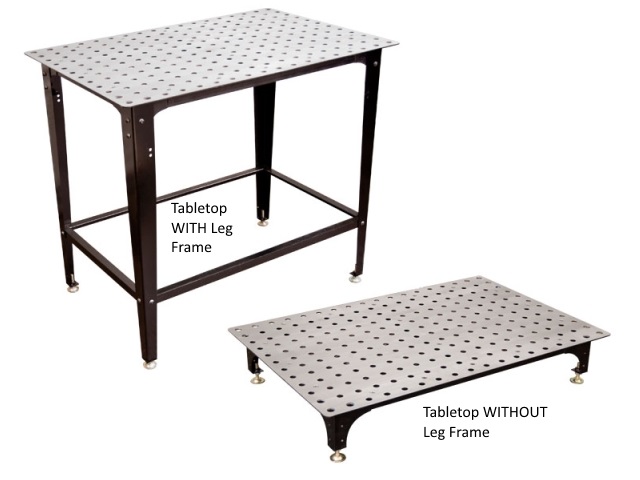

FixturePoint Welding Table
Use as a free standing table or on top of your existing workbench with included legs and leveling feet.
TBK2-24 (TBKM2-24): Clamps & Components Kit:
UBN105
WEIGHT: 0.8 LB. (0.4 kg) /ea.
QTY: 4

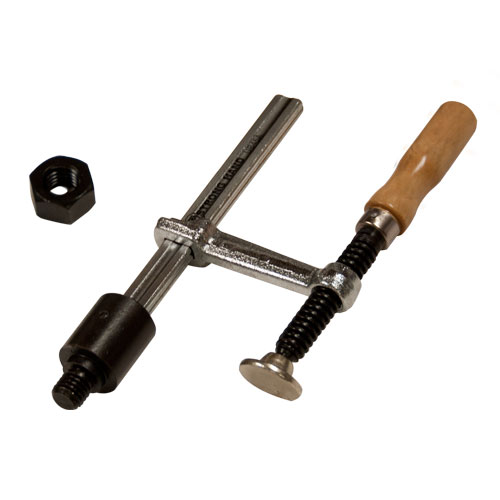

Inserta Clamps
Insert into any hole on the tabletop for fast hold-down clamping.
TBXV412
WEIGHT: 0.1 LB. (0.03 kg) /ea.
QTY: 8

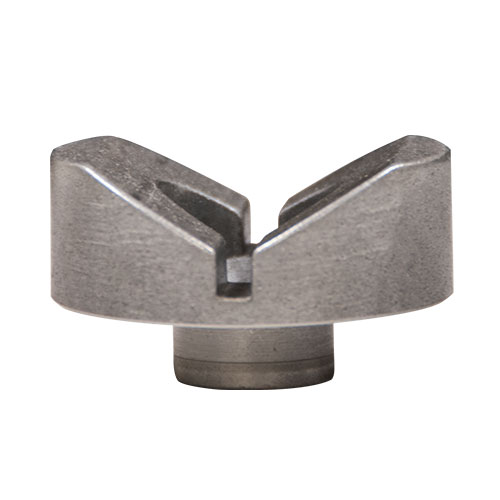

V-Blocks
Designed to hold round parts. Fit into the holes of the FixturePoint table, D-Stop bars and V-Spacers.
T64211
WEIGHT: 0.2 LB. (0.1 kg) /ea.
QTY: 4

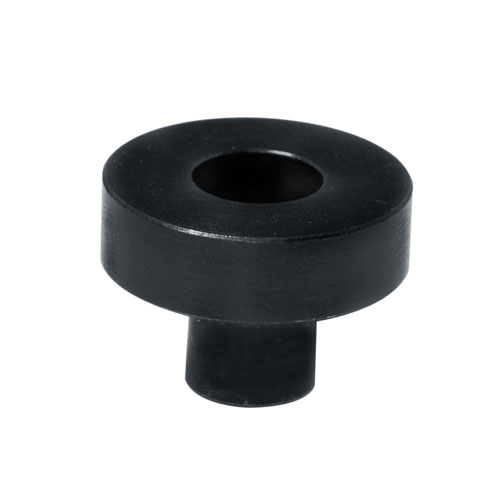

V-Spacers
Used in conjunction with V-Block.
T60632
WEIGHT: 0.2 LB. (0.1 kg) /ea.
QTY: 4

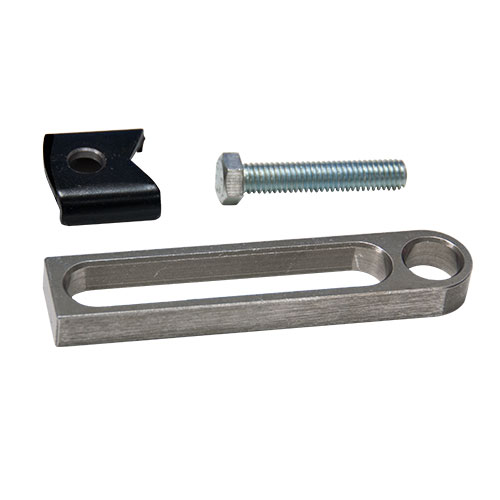

Stop Bars
Mount on the tabletop to locate and stop stock. Use with Threaded Adaptors.
TXB5204 (TXB6204)
WEIGHT: 0.2 LB. (0.1 kg) /ea.
QTY: 4

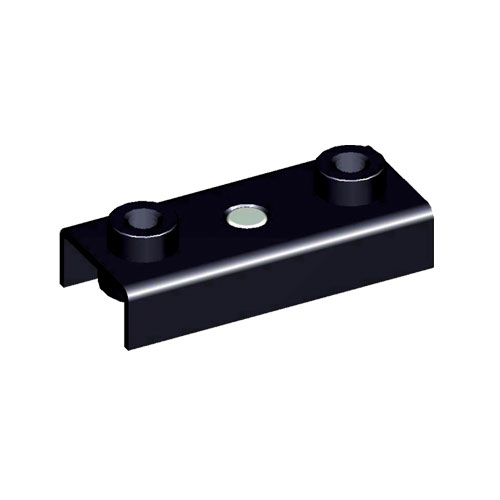

Threaded Adaptors- Mount underneath tabletop to convert any table hole to a 3/8-16 threaded hole.
