MagBrace
MagBrace
Position a single metal piece, or 2-axis stock, at 90° on round, square, or angled structures before tack welding. The MagBrace creates a "rest" for secure holding and positioning of stock. Magnets on the face of the 1.8" "rest" provide light duty holding of stock.
Made of machined aluminum die casting. Choose from MagBrace only (Mount with your own clamp) or MagBrace & Clamp Set.
| Part No. | Description | A (Max. Square) | B (Max. Ø) | C | D | H | Weight |
|---|---|---|---|---|---|---|---|
| MX50 | MagBrace with 2 magnets | 3 x 3" (76 x 76 mm) |
2.8" (70 mm) |
4.5" (114 mm) |
1.8" (46 mm) |
2.4" (61 mm) |
0.7 LB (0.3 kg) |
| UBB65 | MagBrace mounted on clamp w/ Spring-loaded arm | 3 x 3" (76 x 76 mm) |
2.8" (70 mm) |
4.5" (114 mm) |
1.8" (46 mm) |
2.4" (61 mm) |
1.5 LBS (0.7 kg) |

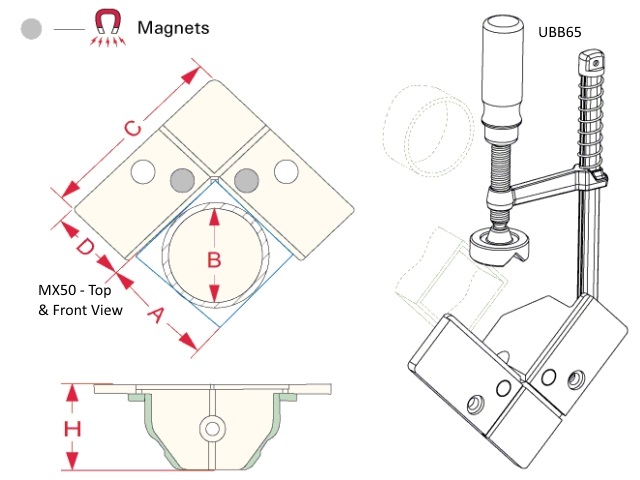

Parts of MagBrace
Applications of MagBrace
Mount MagBrace with clamping device. Holding round tube.
Mount MagBrace with clamping device. Holding square tube.
Angle iron centered on square tube.
