Grounding Clamps

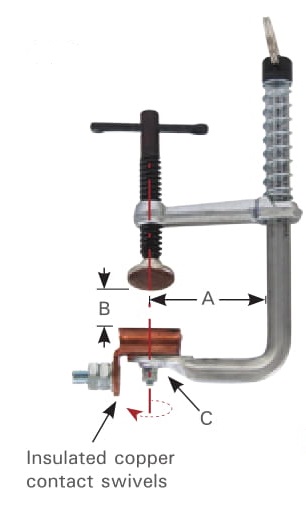

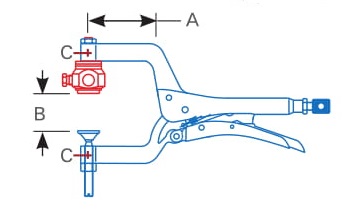

| Part No. | Amperage / Cable Size | Throat Depth (A) (mm) | Max. Capacity (B) (mm) | Tapped Hole (C) | Clamping Pressure (kg) | OAL (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GB428M | 300A / -- | 64 | 75 | M6 | 100 | 180 | 0.4 |
| GP950 | 450A / 2/0 - 0.8 | 89 | 64 | M10 | 180 | 280 | 1.1 |

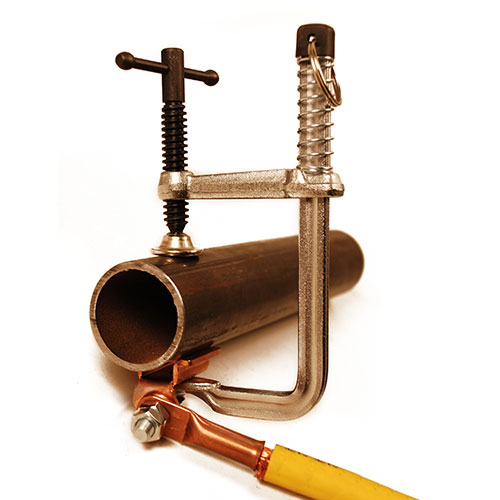

Grounding Clamps
Clamping + Grounding at the same time.
Consistently rated at 300 AMPS
Solid, insulated copper U-Channel rotates for easy access and can attach to round / odd-shaped parts.

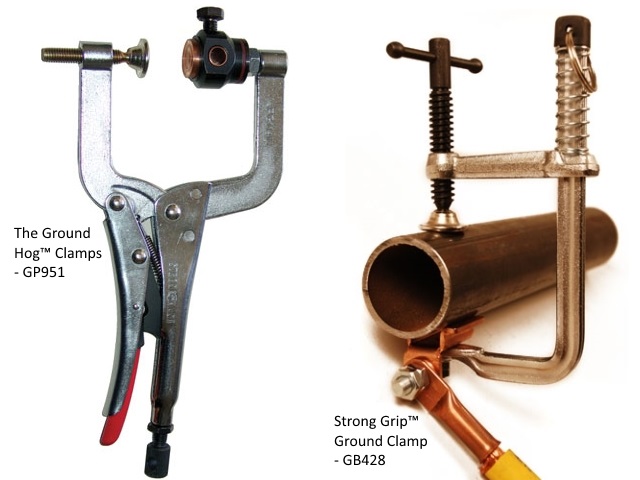

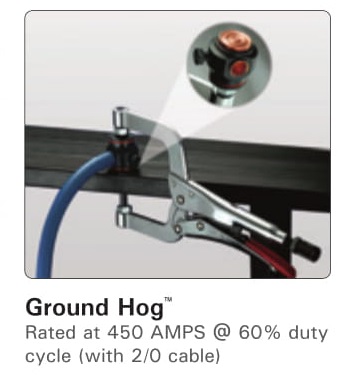

Ground Hog™ Clamps
Insulated Grounding Contact
The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.
- Controls the electrical current by isolating the contact surface and the cable connection.
- Improve arc stability and cable life, and reduce power consumption.
