Modular Platen Clamps
Modular Platen Clamps

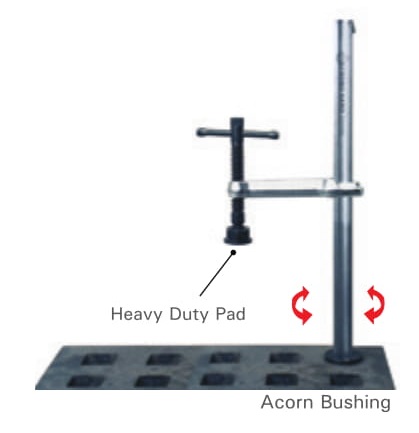

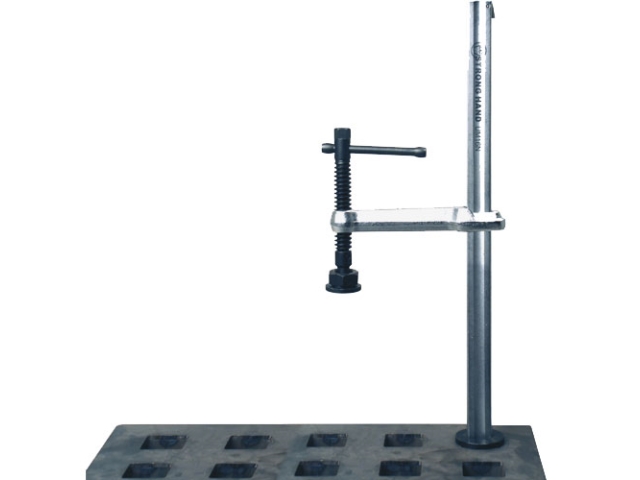

For fast, secure clamping, simply insert the clamp into the 1-3/4" square hole in your acorn platen. Slide the clamp arm down to the work piece and turn the T-Handle to tighten.
Choose from Acorn Bushing or Table Mount Models.
Clamp comes with standard or heavy duty Swivel Pads.
Unique optional Side-Kick Attachment provides push-action horizontal clamping force.
Optional V-Pads can be mounted on the Sliding Arm or Side-Kick Attachment.

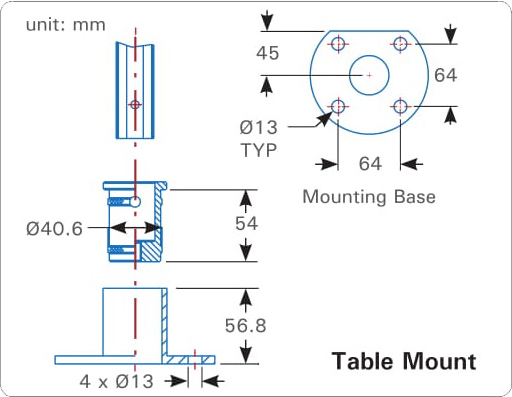

Table Mount
| Part No. | Rail Size | Pad | Opening (mm) | Throat (mm) | Weight (kg) |
|---|---|---|---|---|---|
| UF8NC | "F" | Standard | 203 | 120 | 2.2 |
| UF10NC | "F" | Standard | 254 | 120 | 2.2 |
| UF12NC | "F" | Standard | 305 | 120 | 2.4 |
| UM12NC | "M" | Heavy Duty | 305 | 140 | 3.6 |
| UM16NC | "M" | Heavy Duty | 406 | 140 | 4.0 |
| UM20NC | "M" | Heavy Duty | 508 | 140 | 4.3 |

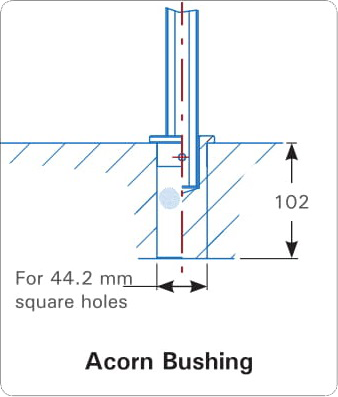

Acorn Bushing
| Part No. | Rail Size | Pad | Opening (mm) | Throat (mm) | Weight (kg) |
|---|---|---|---|---|---|
| UF8NA | "F" | Standard | 203 | 120 | 2.3 |
| UF10NA | "F" | Standard | 254 | 120 | 2.4 |
| UF12NA | "F" | Standard | 305 | 120 | 2.4 |
| UM12NA | "M" | Heavy Duty | 305 | 140 | 3.6 |
| UM16NA | "M" | Heavy Duty | 406 | 140 | 4.0 |
| UM20NA | "M" | Heavy Duty | 508 | 140 | 4.4 |
Parts of Modular Platen Clamps
