Table Legs
Siegmund Welding Tables come with a wide range of mounting options to suit every workspace. Legs are ordered individually and the number required will vary depending on table size.
Legs mount onto plates at the bottom of the table; to calculate height of work surface add the height of the leg and the height of the table together. For example, the 750 mm Standard Leg combined with a table height of 200 mm results in a 950 mm high work surface. Leveling feet with spindles at the bottom of the legs offer fine adjustment.
Use of castors not recommended for tables larger than 2 x 2 meters in size.
Anchor plates recommended for use with top heavy loads or with welding robots.

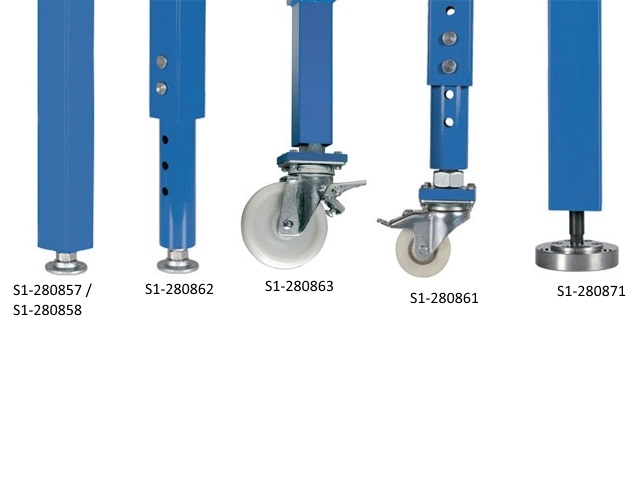

Leg

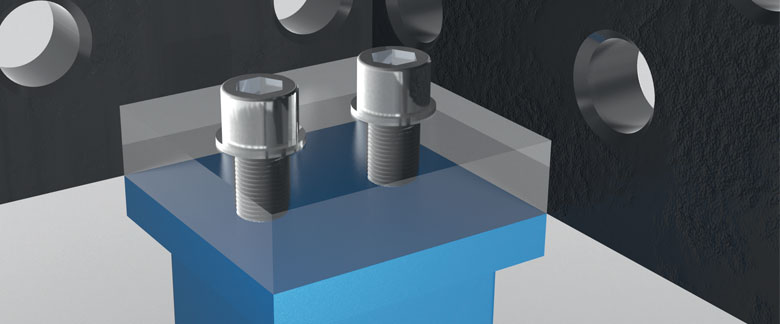

Mouting Pattern
| Name | Item Number | Height (mm) | Spindle Range (mm) | Capacity (kg) | Weight (kg) |
|---|---|---|---|---|---|
| Leg, Standard 750 | S1-280857 | 750 | 50 | 1000 | 8.20 |
| Leg, Standard 650 | S1-280858 | 650 | 50 | 1000 | 8.20 |

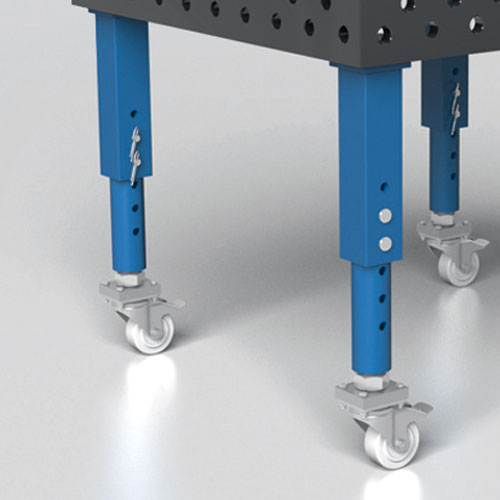

| Leg, Height Adjustable w/ Castor and Brake | S1-280861 | 550-750 | 25 | 600 | 14.70 |
| Leg, Height Adjustable | S1-280862 | 450-725 | 30 | 1000 | 10.30 |
| Leg, Heavy Duty Castor w/ Brake | S1-280863 | 750 | 25 | 1000 | 13.90 |
| Leg w/ Anchor Plate | S1-280871 | 750 | 50 | 1000 | 11.40 |
Other Table Mounting Options
In addition to the standard leg options, special mounting kits are available as special order:
- Hydraulic Lift for all sizes
- Extra low ground clearance castors
- Rail mount with heavy duty frame for all sizes
- Rail mount with wheeled track and heavy duty frame for all sizes

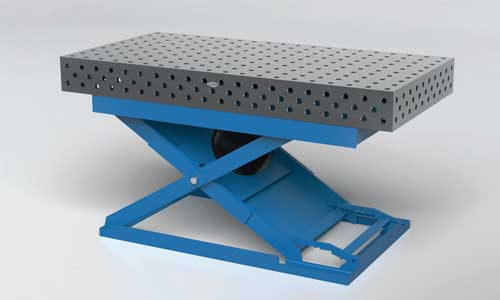

Hydraulic Lift

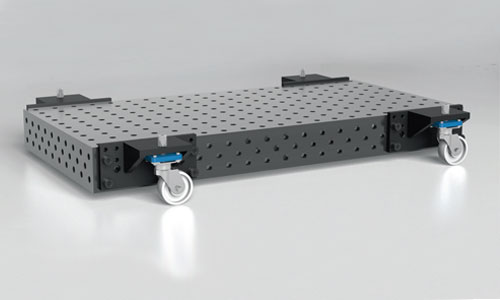

Extra low ground clearance castors

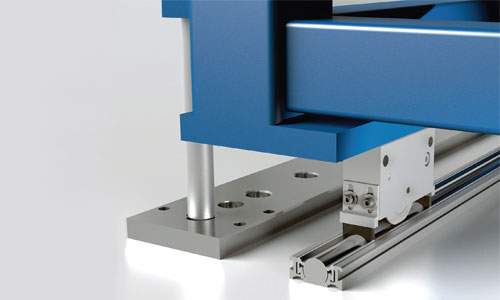

Rail Mount Detail

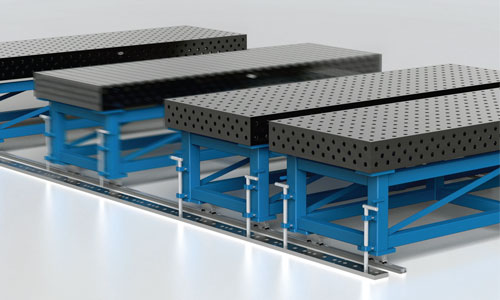

Rail Mount and Wheeled Track
