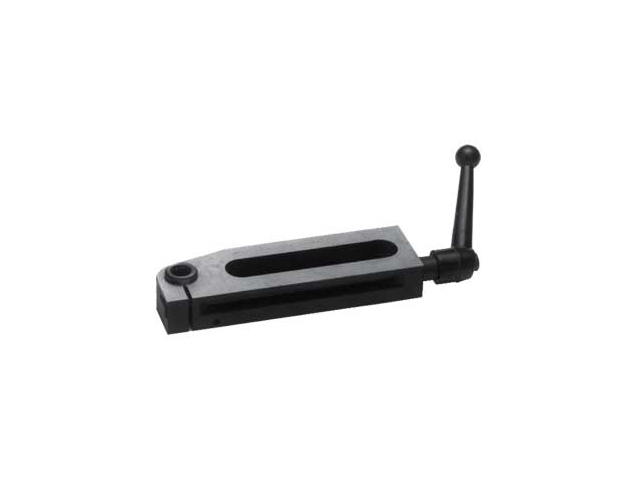

Bedding Support
Bedding Support
• Used in addition to the conventional three point fixed supports.
• Low profile unit can be slid under the workpiece and positioned where the cutter is most likely to create chatter and vibration.
• Spring-loaded plunger is first depressed and held down with the lock handle. Once positioned, the handle is released.
• Turning the handle will tighten the plunger to support a load of 500-1000 lbs. depending on the model.
• A 1/2-13 stud can be threaded into the plunger to raise height of the support.

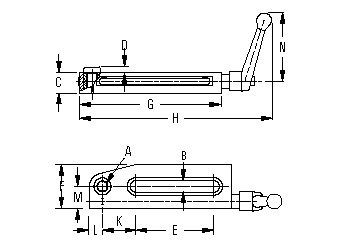

| Part No. | A | B | C | D (Max. Stroke) |
E | F | G | H | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 850201 | 5/16-18 | 0.33 | 0.71 | 0.11 | 1-13/32 | 1-3/16 | 3-3/8 | 5-3/16 | 1-1/16 | 13/32 | 25/32 | 2-9/16 |
| 850202 | 1/2-13 | 0.53 | 0.95 | 0.23 | 3-9/16 | 2" | 6-1/2 | 8-13/16 | 1-17/32 | 19/32 | 1" | 3-1/8 |
| 850203 | 5/18-11 | 0.67 | 1.34 | 0.43 | 4-1/16 | 2-3/8 | 7-1/2 | 10-5/8 | 1-3/4 | 13/16 | 1-9/16 | 4-5/16 |
| Part No. | A |
|---|---|
| 850201M | M8 |
| 850202M | M12 |
| 850203M | M16 |
