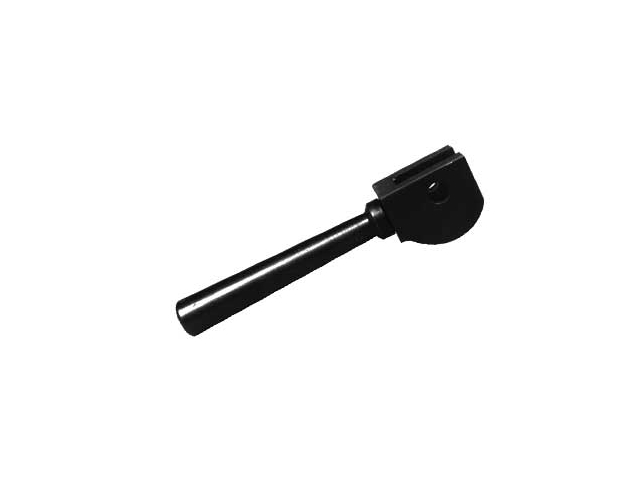

Double Cams
Double Cams
Material: Medium Carbon Steel
Finish: Black Oxide
• Double cams are for fast change tooling applications that require moderate clamping force.
• Matching eye bolts and clamp straps available for your clamp assembly.
• An extended base version allows position adjustment on machine tables.

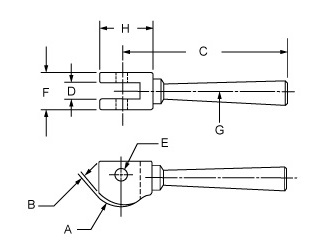

| Part No. | A Radius |
B Raise |
C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 849005 | 9/16 | 1/16 | 2-1/2 | 1/4 | 3/16 | 9/16 | 0.31 | 0.97 |
| 849010 | 11/16 | 1/16 | 3-1/2 | 5/16 | 1/4 | 5/8 | 0.38 | 1.21 |
| 849015 | 15/16 | 7/64 | 5" | 1/2 | 3/8 | 1-1/8 | 0.55 | 1.39 |
| 849020 | 1-3/16 | 9/64 | 5-3/8 | 5/8 | 5/8 | 1-1/4 | 0.68 | 2.05 |
