Cam Action Clamps
Cam Action Clamps
Body Material: Steel, Wear surface hardened
Handle Material: Phenolic black plastic
Finish: Black Oxide
• Low profile quick action clamp with a jaw that pivots forward and downward at the same time when handle is turned.
• Locks positively at any position within its 180º turn and will hold parts that vary slightly in dimension.
• An extended base version allows position adjustment on machine tables.

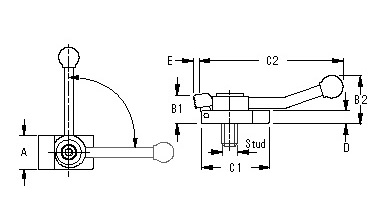

Standard Base - 850290 | 850300

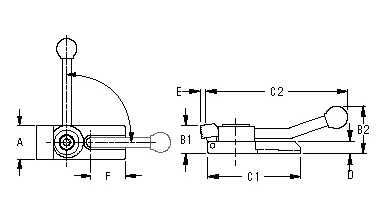

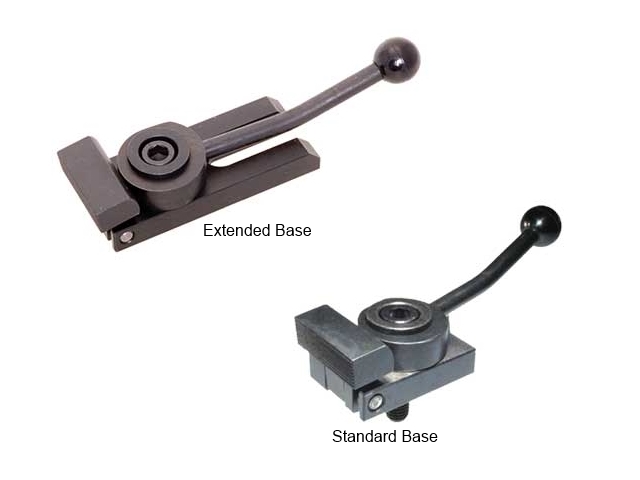

Extended Base - 85295 | 850305
| Part No. | Base | Stud | A | B1 | B2 | C1 | C2 | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|
| 850290 | Standard | 5/16-18 | 1-1/4 | 1" | 1-5/8 | 1-3/4 | 5" | 7/16 | 1/8 | -- |
| 850295 | Extended | 5/16-18 | 1-1/4 | 1" | 1-5/8 | 3-1/8 | 5" | 7/16 | 1/8 | 1" |
| 850300 | Standard | 1/2-13 | 1-7/8 | 1-1/2 | 2-1/2 | 2-3/4 | 7-1/2" | 5/8 | 5/32 | -- |
| 850305 | Extended | 1/2-13 | 1-7/8 | 1-1/2 | 2-1/2 | 4-3/4 | 7-1/2" | 5/8 | 5/32 | 1-1/2 |
