Forged Adjusta-Clamps
Forged Adjusta-Clamps
Material: Carbon Steel
Finish: Black Oxide

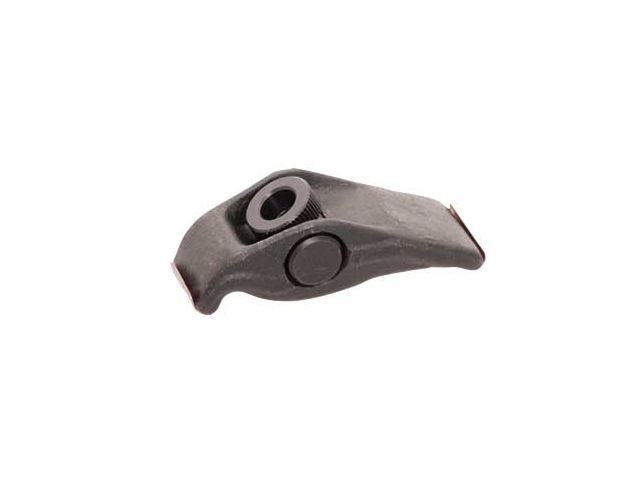

• Rugged forged steel pivot clamp.
• Instant height adjustment without blocks or shims. One piece assembly allows quick setups and eliminates lost clamp pieces.
• Removable brass shims protect machine table and work piece.
• Clamp can swing 90° in either direction for loading clearance.
• Fast Setup - save up to 90% of setup time.
• Simple - one piece design, no searching for the right step block and shim.
• Space-Saving - takes up little table space.
• Safe - Pivoting action will compensate for work piece variation.
• Versatile - Compact, single piece pivoting design. Numerous accessories make many unique applications possible.

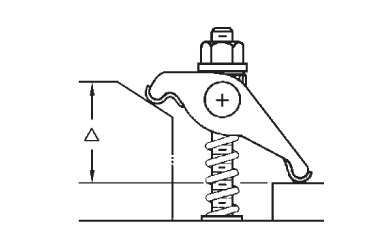

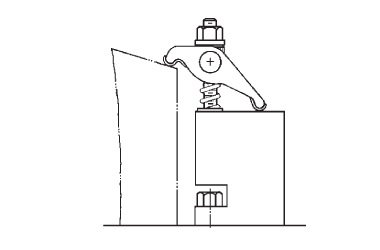

No spacer needed, ideal for machine center tombstones or other vertical mountings.

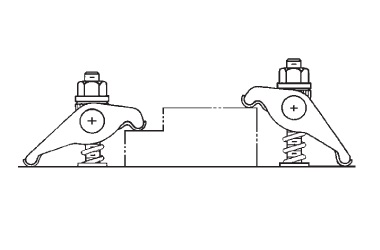

Use to clamp two uneven workpieces.
With riser blocks the Forged Adjusta-Clamps can be used for tall jobs.

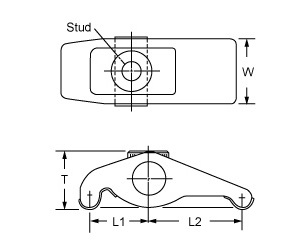

| Part No. | Stud Size | Clamping Range | L1 | L2 | T | W | Weight (LBS.) | Spring for FAC Assembly |
|---|---|---|---|---|---|---|---|---|
| 850740 | 3/8 | 0 ~ 1-3/4 | 1-7/8 | 1-1/8 | 1" | 1-1/4 | 0.6 | 850740-60 |
| 850750 | 1/2 | 0 ~ 2-1/16 | 2-5/16 | 1-7/16 | 1-7/16 | 1-5/8 | 1.1 | 850750-60 |
| 850760 | 5/8 | 0 ~ 3" | 3-1/4 | 2" | 1-7/8 | 1-7/8 | 2.4 | 850760-60 |
| 850770 | 3/4 | 0 ~ 4-1/4 | 3-1/2 | 2-1/8 | 2-1/4 | 2-5/8 | 3.8 | 850770-60 |
| 850790 | 1" | 0 ~ 5-1/2 | 4" | 2-1/4 | 2-7/16 | 3-1/8 | 5.2 | 850790-60 |
