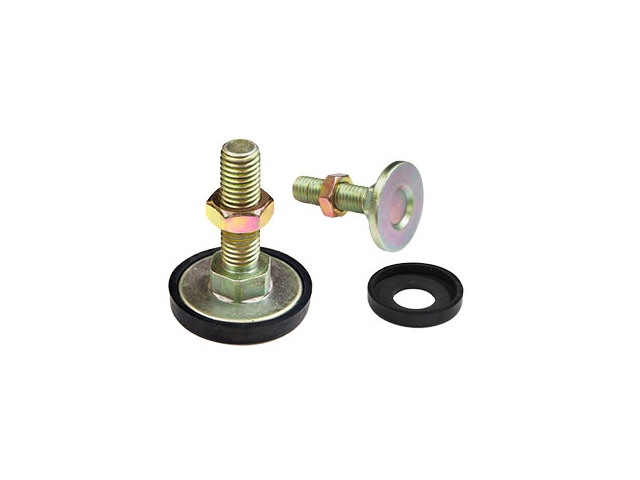

Heavy Duty Fixed Glides
Heavy Duty Fixed Glides
Material: Carbon Steel
Finish: Yellow Zinc Plated
• Extra large, thick hex for heavy duty leveling applications.
• Optional rubber feet prevent marring and skidding.
• Economical, ideal for bulky and heavy equipment.

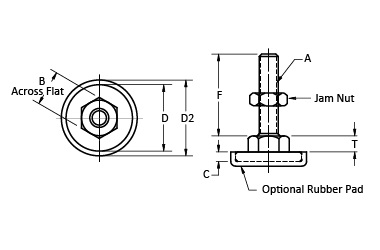

| Part No. | A | B across flat |
C | D | D2 | F | T | |
|---|---|---|---|---|---|---|---|---|
| Standard | With Pad | |||||||
| 854720 | 854720P | 1/4-20 | 1/2 | 0.20 | 1.00 | 1.25 | 1.25 | 0.22 |
| 854730 | 854730P | 5/16-18 | 5/8 | 0.22 | 1.25 | 1.50 | 2.00 | 0.30 |
| 854740 | 854740P | 3/8-16 | 5/8 | 0.22 | 1.25 | 1.50 | 2.00 | 0.30 |
| 854750 | 854750P | 1/2-13 | 15/16 | 0.25 | 1.75 | 2.00 | 2.12 | 0.42 |
| 854760 | 854760P | 5/8-11 | 15/16 | 0.25 | 2.00 | 2.25 | 2.12 | 0.42 |
