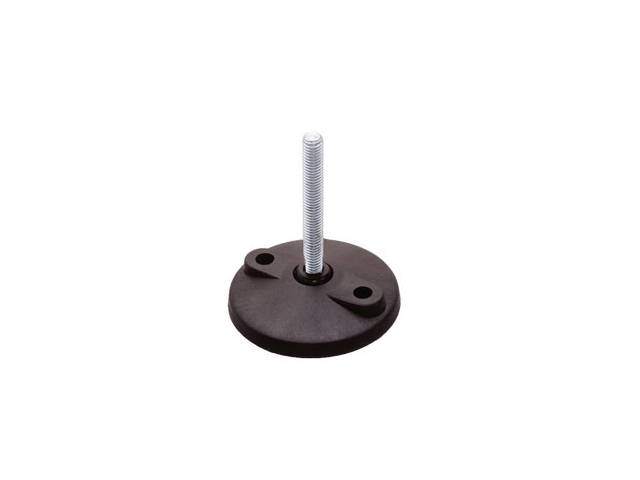

Leveling Pads - Plastic with Lag Holes
Price: RM0.00
Leveling Pads - Plastic with Lag Holes
Pad Material: Strong Glass Filled Nylon
Socket & Stud Material: Medium Carbon Steel / 302 Stainless Steel
Pad Finish: Black
Socket & Stud Finish: Zinc Plated
Finish: Chrome Plated
• A lighter weight, lower cost leveling, and support solution for today's equipment and instrumentation markets.
• Stainless steel socket and studs are available. Available in Metric. Custom length can be ordered as special.
• Comes with elastomer pad.
Steel

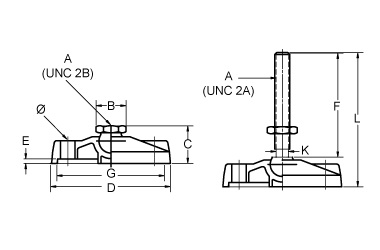

| Part No. | A | B | C | D | E | F | L | K | ∅ | G | Weight Capacity (LBS.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Socket | Stud | |||||||||||
| -- | 854543 | 3/8-16 | -- | 1-3/64 | 3-13/64 | 0.125 | 3 | 3-3/4 | 5/16 | 0.35 | 2-1/8 | 2,000 |
| 854550 | 854555 | 1/2-13 | 3/4 | 1-3/64 | 3-13/64 | 0.125 | 5 | 5-3/4 | 7/16 | 0.35 | 2-1/8 | 2,000 |
| -- | 854565 | 5/8-11 | -- | 1-3/64 | 3-13/64 | 0.125 | 5 | 5-3/4 | 9/16 | 0.35 | 2-1/8 | 2,000 |
| -- | 854655 | 1/2-13 | -- | 1-17/64 | 4" | 0.15 | 5 | 6 | 7/16 | 0.51 | 2-59/64 | 2,600 |
| 854660 | 854666 | 5/8-11 | 7/8 | 1-17/64 | 4" | 0.15 | 6 | 7 | 9/16 | 0.51 | 2-59/64 | 2,600 |
| -- | 854676 | 3/4-10 | -- | 1-17/64 | 4" | 0.15 | 6 | 7 | 11-16 | 0.51 | 2-59/64 | 2,600 |
Stainless Steel
| Part No. | |
|---|---|
| Socket | Stud |
| -- | 8545S43 |
| 8545S50 | 8545S55 |
| -- | 8545S65 |
| -- | 8546S55 |
| 8546S60 | 8546S66 |
| -- | 8546S76 |
Stud Style(metric)
| Part No. | A | |
|---|---|---|
| Steel | Stainless Steel | |
| 8545M103 | 8545SM103 | M10 |
| 8545M125 | 8545SM125 | M12 |
| 8545M165 | 8545SM165 | M16 |
| 8546M125 | 8546SM125 | M12 |
| 8546M166 | 8546SM166 | M16 |
| 8546M206 | 8546SM206 | M20 |
