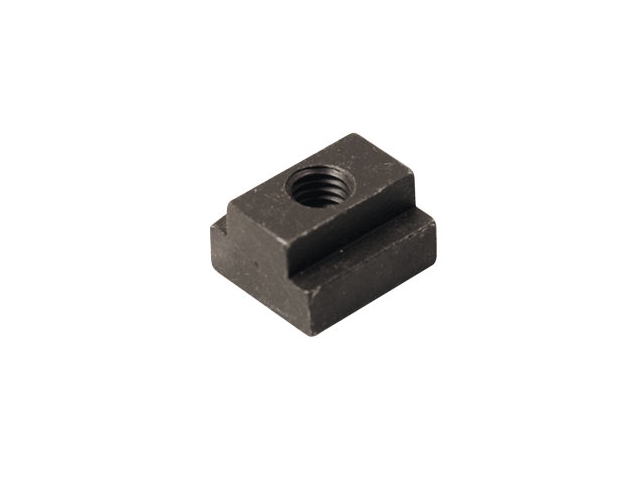

T-Slot Nuts
T-Slot Nuts
Material: Carbon Steel
Finish: Black Oxide
• Bottom of T-Slot Nut Is staked to prevent the stud from protrusion. The B-dimension was made to be 0.005-0.010 under the width of the machine table.
• Case hardened.
• Last thread closed.

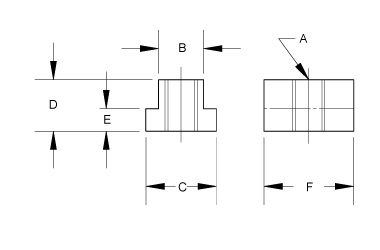

| Part No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 825601 | 1/4-20 | 3/8 | 9/16 | 3/8 | 15/64 | 9/16 |
| 825602 | 5/16-18 | 3/8 | 5/8 | 3/8 | 1/4 | 7/8 |
| 825603 | 3/8-16 | 7/16 | 11/16 | 1/2 | 7/32 | 7/8 |
| 825604 | 3/8-16 | 1/2 | 7/8 | 1/2 | 9/32 | 7/8 |
| 825607 | 1/2-13 | 9/16 | 7/8 | 5/8 | 11/32 | 1-1/8 |
| 825610 | 1/2-13 | 5/8 | 1" | 5/8 | 11/32 | 1-1/8 |
| 825613 | 1/2-13 | 11/16 | 1-1/8 | 3/4 | 7/16 | 1-1/4 |
| 825614 | 5/8-11 | 11/16 | 1-1/8 | 3/4 | 7/16 | 1-1/4 |
| 825618 | 5/8-11 | 13/16 | 1-1/4 | 1" | 9/16 | 1-1/2 |
| 825620 | 3/4-10 | 13/16 | 1-1/4 | 1" | 9/16 | 1-1/2 |
| 825624 | 3/4-10 | 7/8 | 1-1/2 | 1" | 9/16 | 1-1/2 |
| 825627 | 3/4-10 | 1" | 1-5/8 | 1" | 5/8 | 1-3/4 |
