Plain Eye Bolts / Rod Ends

Brand: Valtra
Product Code: Plain Eye Bolts / Rod Ends
Availability: In Stock

Price: RM0.00

Available Options

* Plain Eye Bolts / Rod Ends:

Description

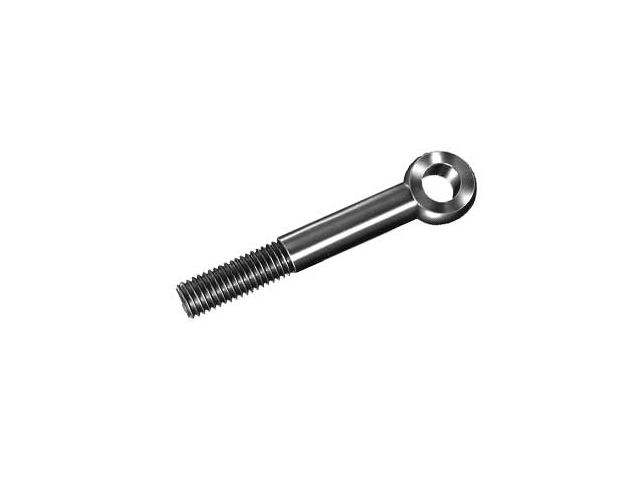

Plain Eyebolts / Rod Ends

Material: Alloy Steel / 300 Series Stainless Steel (Metric Size)

Finish: Black Oxide

• With our special extended thread length eyebolts, you can shorten the shank without sacrificing thread length.
• Heat treated (125,000 p.s.i.). Alloy Steel only.

Inch

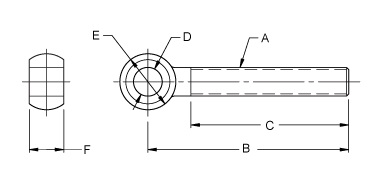

Part No.	A	B	C	D	E	F
832400	1/4-20	2"	3/4	3/16	1/2	1/4
832402	1/4-20	3"	1-1/4	3/16	1/2	1/4
832403	1/4-20	3"	* 2-5/8	3/16	1/2	1/4
832C2030	1/4-20	3"	3/4	3/16	1/2	1/4
832C2040	1/4-20	4"	3/4	3/16	1/2	1/4
832404	5/16-18	3"	1-1/2	1/4	5/8	5/16
832406	5/16-18	4"	2"	1/4	5/8	5/16
832408	5/16-18	3"	1-1/2	5/16	5/8	5/16
832410	5/16-18	4"	2"	5/16	5/8	5/16
832411	5/16-18	4"	* 3-1/2	5/16	5/8	5/16
832412	3/8-16	3"	1-1/2	5/16	3/4	3/8
832414	3/8-16	5"	2-1/2	5/16	3/4	3/8
832416	3/8-16	3"	1-1/2	3/8	3/4	3/8
832C4040	3/8-16	4"	1-1/2	3/8	3/4	3/8
832417	3/8-16	3-3/4	2"	3/8	3/4	3/8
832418	3/8-16	5"	2-1/2	3/8	3/4	3/8
832419	3/8-16	5"	* 4-1/2	3/8	3/4	3/8
832420	3/8-16	3-3/4	1-1/2	3/8	1"	1"
832422	3/8-16	5"	2-1/2	3/8	1"	1"
832C4470	7/16-14	7"	6"	3/8	1"	7/16
832424	1/2-13	3-3/4	1-1/2	3/8	1"	1/2
832426	1/2-13	5"	2"	3/8	1"	1/2
832427	1/2-13	5"	* 4-1/2	3/8	1"	1/2
832C5040	1/2-13	4"	1-1/2	3/8	1"	1/2
832C5050	1/2-13	5"	1-1/2	3/8	1"	1/2
832C5060	1/2-13	6"	1-1/2	3/8	1"	1/2
832428	5/8-11	4-1/2	2"	5/8	1-1/4	5/8
832430	5/8-11	6"	2-1/2	5/8	1-1/4	5/8
832431	5/8-11	6"	* 5-1/2	5/8	1-1/4	5/8
832C6050	5/8-11	5"	1-3/4	5/8	1-1/4	5/8
832C6060	5/8-11	6"	1-3/4	5/8	1-1/4	5/8
832C6070	5/8-11	7"	1-3/4	5/8	1-1/4	5/8
832C6080	5/8-11	8"	1-3/4	5/8	1-1/4	5/8
832432	3/4-10	4-1/2	2	3/4	1-1/2	3/4
832434	3/4-10	6"	2-1/2	3/4	1-1/2	3/4
832435	3/4-10	6"	* 5-1/4	3/4	1-1/2	3/4
832C770F	3/4-10	7"	2-3/4	3/4	1-1/2	3/4
832C778F	3/4-10	7"	4-1/2	3/4	1-1/2	3/4
832C7050	3/4-10	5"	1-3/4	5/8	1-1/2	3/4
832C7060	3/4-10	6"	1-3/4	5/8	1-1/2	3/4
832C7070	3/4-10	7"	1-3/4	5/8	1-1/2	3/4
832C7080	3/4-10	8"	1-3/4	5/8	1-1/2	3/4
832446	7/8-9	6"	3"	3/4	1-3/4	7/8
832449	7/8-9	10"	4"	3/4	1-3/4	7/8
832C1010	1"-8	10"	* 9"	5/8	2"	1"

Metric

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
832M06-050	M6 x 1.0	50	40	6	12	6
832M06-075	M6 x 1.0	75	66	6	12	6
832M08-075	M8 x 1.25	75	65	8	16	8
832M08-100	M8 x 1.25	100	90	8	16	8
832M10-075	M10 x 1.5	75	60	10	20	10
832M10-100	M10 x 1.5	100	85	10	20	10
832M10-125	M10 x 1.5	125	110	10	20	10
832M12-100	M12 x 1.75	100	85	12	24	12
832M12-125	M12 x 1.75	125	110	12	24	12
832M16-115	M16 x 2.0	115	95	16	32	16
832M16-150	M16 x 2.0	150	130	16	32	16
832M20-150	M20 x 2.5	150	125	20	40	20

Stainless Steel Metric

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
832SM08-074	M8 x 1.25	75	65	6	16	8
832SM08-075	M8 x 1.25	75	65	8	16	8
832SM08-099	M8 x 1.25	100	90	6	16	8
832SM08-100	M8 x 1.25	100	90	8	16	8
832SM10-074	M10 x 1.5	75	60	8	20	10
832SM10-075	M10 x 1.5	75	60	10	20	10
832SM10-099	M10 x 1.5	100	85	8	20	10
832SM10-100	M10 x 1.5	100	85	10	20	10
832SM10-124	M10 x 1.5	125	110	8	20	10
832SM10-125	M10 x 1.5	125	110	10	20	10
832SM12-099	M12 x 1.75	100	85	10	24	12
832SM12-100	M12 x 1.75	100	85	12	24	12
832SM12-124	M12 x 1.75	125	110	10	24	12
832SM12-125	M12 x 1.75	125	110	12	24	12
