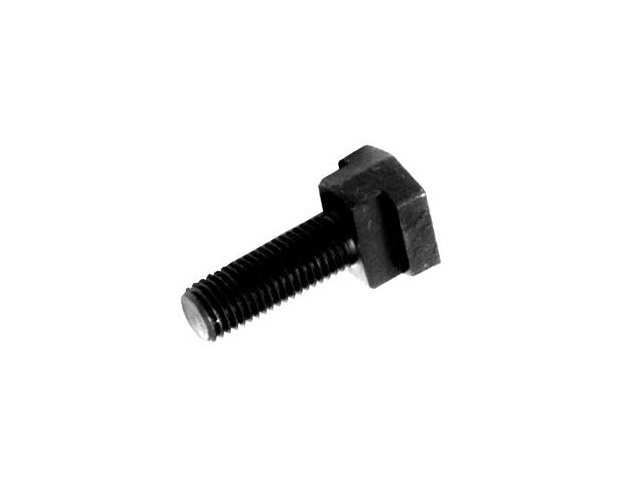

T-Slot Bolts
T-Slot Bolts
Material: Alloy Steel
Finish: Black Oxide
• All contact surfaces on head are machined.
• Heat treated to Grade 5 (125,000 psi)

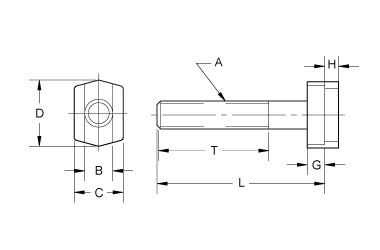

| A: 3/8-16 B: 0.375 C: 11/16 D: 13/16 G: 3/16 H: 3/16 |
A: 1/2-13 B: 0.500 C: 7/8 D: 1-3/16 G: 5/16 H: 1/4 |
A: 5/8-11 B: 0.625 C: 1-1/8 D: 1-5/16 G: 11/32 H: 11/32 |
A: 3/4-10 B: 0.750 C: 1-1/4 D: 1-1/2 G: 13/32 H: 15/32 |
A: 1"-8 B: 1.00 C: 1-3/4 D: 2-1/16 G: 7/16 H: 11/16 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | L | T | Part No. | L | T | Part No. | L | T | Part No. | L | T | Part No. | L | T |
| 842310 | 1.0 | 0.75 | 842515 | 1.5 | 1.0 | 842615 | 1.5 | 1.0 | 842720 | 2.0 | 1.5 | 842930 | 3 | 2.0 |
| 842315 | 1.5 | 1.00 | 842520 | 2.0 | 1.5 | 842620 | 2.0 | 1.5 | 842725 | 2.5 | 2.0 | 842940 | 4 | 2.5 |
| 842320 | 2.0 | 1.50 | 842525 | 2.5 | 2.0 | 842625 | 2.5 | 2.0 | 842730 | 3.0 | 2.0 | 842950 | 5 | 2.5 |
| 842325 | 2.5 | 2.00 | 842530 | 3.0 | 2.0 | 842630 | 3.0 | 2.0 | 842735 | 3.5 | 2.0 | 842960 | 6 | 2.5 |
| 842330 | 3.0 | 2.00 | 842535 | 3.5 | 2.0 | 842635 | 3.5 | 2.0 | 842740 | 4.0 | 2.5 | 842970 | 7 | 3.0 |
| 842335 | 3.5 | 2.00 | 842540 | 4.0 | 2.5 | 842640 | 4.0 | 2.5 | 842750 | 5.0 | 2.5 | 842980 | 8 | 3.5 |
| 842340 | 4.0 | 2.50 | 842545 | 4.5 | 2.5 | 842650 | 5.0 | 2.5 | 842760 | 6.0 | 2.5 | 842990 | 9 | 4.0 |
| 842350 | 5.0 | 2.50 | 842550 | 5.0 | 2.5 | 842660 | 6.0 | 2.5 | 842770 | 7.0 | 3.0 | 842991 | 10 | 4.0 |
| 842360 | 6.0 | 2.50 | 842560 | 6.0 | 2.5 | 842670 | 7.0 | 3.0 | 842780 | 8.0 | 3.5 | -- | -- | -- |
| -- | -- | -- | 842570 | 7.0 | 3.0 | 842680 | 8.0 | 3.5 | 842790 | 9.0 | 4.0 | -- | -- | -- |
| -- | -- | -- | 842580 | 8.0 | 3.5 | 842691 | 10.0 | 4.0 | 842791 | 10.0 | 4.0 | -- | -- | -- |
| -- | -- | -- | -- | -- | -- | 842692 | 12.0 | 4.0 | 842792 | 12.0 | 4.0 | -- | -- | -- |
For Bridgeport Machine Tables:
| Part No. | L | T | A | B | C | D | G | H |
|---|---|---|---|---|---|---|---|---|
| 844530 | 3 | 2.0 | 3/8-16 | 0.625 | 1" | 1-1/4 | 3/16 | 3/16 |
| 844540 | 4 | 2.5 | ||||||
| 844550 | 5 | 2.5 | ||||||
| 844560 | 6 | 2.5 |
