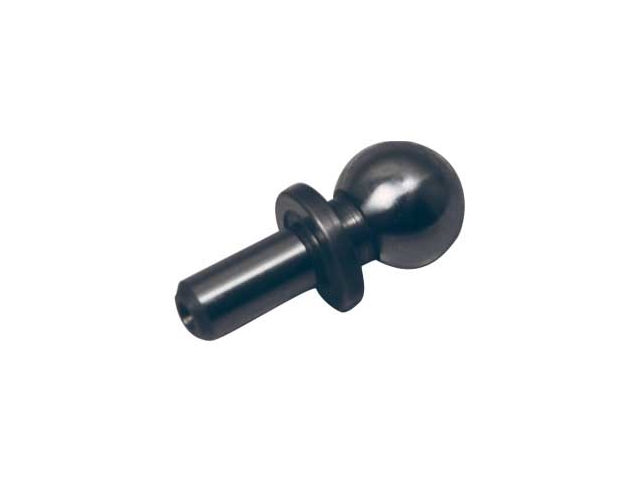

Shoulder Tooling Balls
Shoulder Tooling Balls
Material: 1144 Heat Treated to Rc 54-56

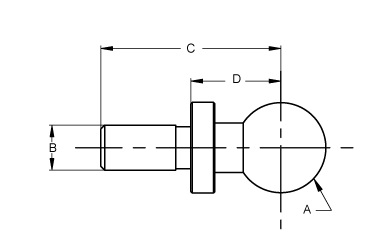

| Part No. | A ±0.0002" |
B * | C ±0.0002" |
D | |
|---|---|---|---|---|---|
| Slip Fit | Press Fit | ||||
| 826805 | 826806 | 0.2500 | 0.1250 | 0.200 | 9/16 |
| 826807 | 826808 | 6 mm | 3 mm | 6 mm | 12 mm |
| 826810 | 826811 | 0.3750 | 0.1875 | 0.300 | 3/4 |
| 826815 | 826816 | 0.5000 | 0.2500 | 0.400 | 15/16 |
| 826820 | 826821 | 0.5000 | 0.2500 | 0.500 | 1-3/8 |
| 826825 | 826826 | 0.5000 | 0.3125 | 0.500 | 1-1/2 |
| 826830 | 826831 | 0.7500 | 0.3750 | 0.500 | 1-1/4 |
| 856840 | -- | 1.0000 | 0.2500 | 0.860 | 1-1/2 |
* Slip-fit shank tolerance is +0.0000, -0.0004.
* Press-fit shank tolerance is +0.0003, -0.0000.
* Ball and shank are concentric within 0.0002 T.I.R
