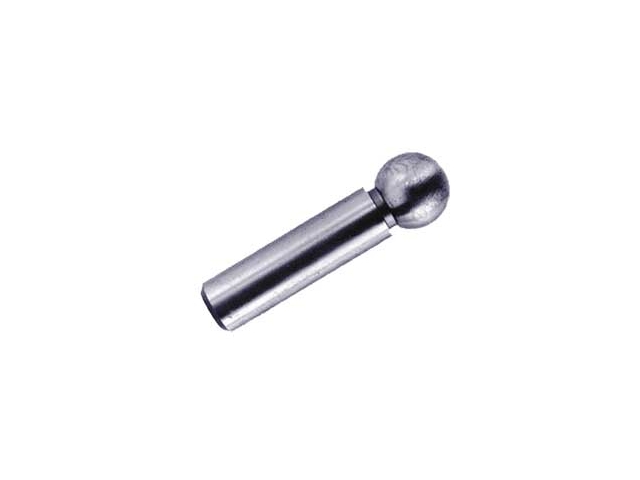

Standard Tooling Balls
Standard Tooling Balls
Material: 1144 Heat Treated to Rc 54-56

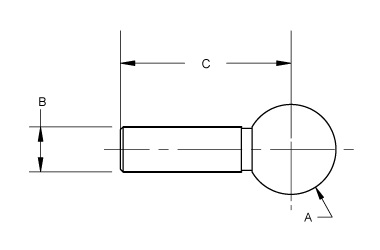

| Part No. | A ±0.0002" |
B * | C | |
|---|---|---|---|---|
| Slip Fit | Press Fit | |||
| 826705 | 826706 | 0.2500 | 0.1250 | 9/16 |
| 826710 | 826711 | 0.3750 | 0.1875 | 3/4 |
| 826715 | 826716 | 0.5000 | 0.2500 | 15/16 |
| 826720 | 826721 | 0.5000 | 0.2500 | 1-1/2 |
| 826725 | 826726 | 0.5000 | 0.3125 | 1-1/2 |
| 826730 | 826731 | 0.5000 | 0.3750 | 1-1/2 |
* Slip-fit shank tolerance is +0.0000, -0.0004.
* Press-fit shank tolerance is +0.0003, -0.0000.
* Ball and shank are concentric within 0.0002 T.I.R.
