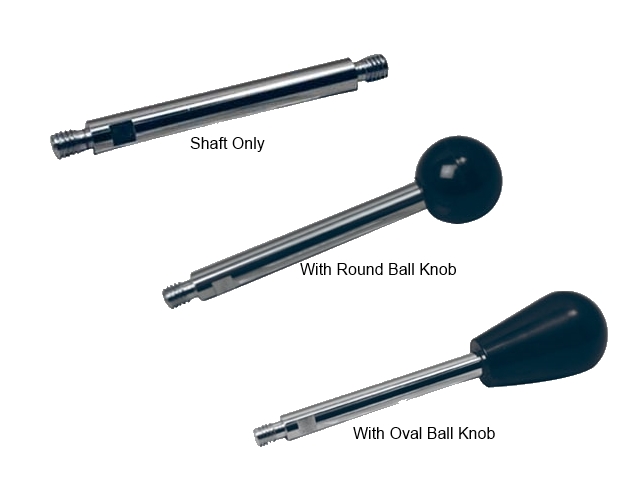

G Series Lever Bars

Brand: Valtra
Product Code: G Series Lever Bars
Availability: In Stock

Price: RM0.00

Available Options

* G Series Lever Bars:

Description

Material: Carbon Steel

Finish: Bright Chrome Plated, 300 Series Stainless Steel

• Black Oxide model available, add B suffix. Ex: G2531-16-B
• Phenolic knobs are standard. Plastic knobs available as options.

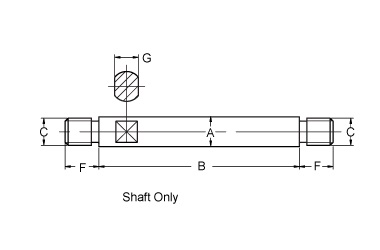

Part No.		A	B	C	F	G
Chrome	Stainless Steel	A	B	C	F	G
G2531-16	--	0.31	1.6	1/4-20	3/8	1/4
G2531-18	--	0.31	1.8	1/4-20	3/8	1/4
G2531-24	--	0.31	2.4	1/4-20	3/8	1/4
G2531-33	--	0.31	3.3	1/4-20	3/8	1/4
G2531-45	--	0.31	4.5	1/4-20	3/8	1/4
G3139-15	G3139-15S	0.39	1.5	5/16-18	7/16	5/16
G3139-22	G3139-22S	0.39	2.2	5/16-18	7/16	5/16
G3139-30	G3139-30S	0.39	3.0	5/16-18	7/16	5/16
G3139-40	G3139-40S	0.39	4.0	5/16-18	7/16	5/16
G3139-55	G3139-55S	0.39	5.5	5/16-18	7/16	5/16
G3747-20	G3747-20S	0.47	2.0	3/8-16	1/2	3/8
G3747-27	G3747-27S	0.47	2.7	3/8-16	1/2	3/8
G3747-32	--	0.47	3.2	3/8-16	1/2	3/8
G3747-37	G374737S	0.47	3.7	3/8-16	1/2	3/8
G3747-47	G3747-47S	0.47	4.7	3/8-16	1/2	3/8
G3747-60	G3747-60S	0.47	6.0	3/8-16	1/2	3/8
G5055-37	G5055-37S	0.55	3.7	1/2-13	5/8	7/16
G5055-47	G5055-47S	0.55	4.7	1/2-13	5/8	7/16
G5055-57	G5055-57S	0.55	5.7	1/2-13	5/8	7/16
G5055-67	G5055-67S	0.55	6.7	1/2-13	5/8	7/16
G5062-37	--	0.62	3.7	1/2-13	5/8	1/2
G5062-44	--	0.62	4.4	1/2-13	5/8	1/2
G5062-64	--	0.62	6.4	1/2-13	5/8	1/2
G5062-84	--	0.62	8.4	1/2-13	5/8	1/2
G5062-110	--	0.62	11.0	1/2-13	5/8	1/2

Part No.	L	D	B	C	F
G2631-16	2.3	3/4	1.6	1/4-20	3/8
G2631-18	2.4	3/4	1.8	1/4-20	3/8
G2631-24	3.1	3/4	2.4	1/4-20	3/8
G2631-33	4.0	3/4	3.3	1/4-20	3/8
G2631-45	5.2	3/4	4.5	1/4-20	3/8
G3239-15	2.4	1"	1.5	5/16-18	7/16
G3239-22	3.1	1"	2.2	5/16-18	7/16
G3239-30	3.9	1"	3.0	5/16-18	7/16
G3239-40	4.9	1"	4.0	5/16-18	7/16
G3239-55	6.4	1"	5.5	5/16-18	7/16
G3847-20	3.1	1-3/8	2.0	3/8-16	1/2
G3847-27	3.8	1-3/8	2.7	3/8-16	1/2
G3847-32	4.3	1-3/8	3.2	3/8-16	1/2
G3847-37	4.8	1-3/8	3.7	3/8-16	1/2
G3847-47	5.8	1-3/8	4.7	3/8-16	1/2
G3847-60	7.1	1-3/8	6.0	3/8-16	1/2
G5155-37	5.0	1-3/8	3.7	1/2-13	5/8
G5155-47	6.0	1-3/8	4.7	1/2-13	5/8
G5155-57	7.0	1-3/8	5.7	1/2-13	5/8
G5155-67	8.0	1-3/8	6.7	1/2-13	5/8
G5162-37	5.2	1-1/2	3.7	1/2-13	5/8
G5162-44	5.9	1-1/2	4.4	1/2-13	5/8
G5162-64	7.9	1-1/2	6.4	1/2-13	5/8
G5162-84	9.9	1-1/2	8.4	1/2-13	5/8
G5162-110	12.9	1-1/2	11.0	1/2-13	5/8

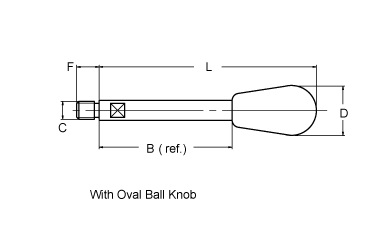

Part No.	L	D	B	C	F
G2731-16	3.2	1"	1.6	1/4-20	3/8
G2731-18	3.4	1"	1.8	1/4-20	3/8
G2731-24	4.0	1"	2.4	1/4-20	3/8
G2731-33	4.9	1"	3.3	1/4-20	3/8
G2731-45	6.1	1"	4.5	1/4-20	3/8
G3339-15	3.1	1"	1.5	5/16-18	7/16
G3339-22	3.8	1"	2.2	5/16-18	7/16
G3339-30	4.6	1"	3.0	5/16-18	7/16
G3339-40	5.6	1"	4.0	5/16-18	7/16
G3339-55	7.1	1"	5.5	5/16-18	7/16
G3947-20	4.5	1-5/8	2.0	3/8-16	1/2
G3947-27	5.2	1-5/8	2.7	3/8-16	1/2
G3947-32	5.7	1-5/8	3.2	3/8-16	1/2
G3947-37	6.2	1-5/8	3.7	3/8-16	1/2
G3947-47	7.2	1-5/8	4.7	3/8-16	1/2
G3947-60	8.5	1-5/8	6.0	3/8-16	1/2
G5255-37	6.2	1-5/8	3.7	1/2-13	5/8
G5255-47	7.2	1-5/8	4.7	1/2-13	5/8
G5255-57	8.2	1-5/8	5.7	1/2-13	5/8
G5255-67	9.2	1-5/8	6.7	1/2-13	5/8
G5262-37	6.2	1-5/8	3.7	1/2-13	5/8
G5262-44	6.9	1-5/8	4.4	1/2-13	5/8
G5262-64	8.9	1-5/8	6.4	1/2-13	5/8
G5262-84	10.9	1-5/8	8.4	1/2-13	5/8
G5262-110	13.9	1-5/8	11.0	1/2-13	5/8
