D1 Zinc Alloy Adjustable Handles

Brand: Valtra
Product Code: D1 Zinc Alloy Adjustable Handles
Availability: In Stock

Price: RM0.00

Available Options

* D1 Zinc Alloy Adjustable Handles:
--- Please Select --- D1-B42 D1-A11 D1-A2-M8 D1-A41 D1-A10 D1-A5-M16 D1-A22 D1-A40 D1-A52 D1-A21 D1-A3-M10 D1-A51 D1-A20 D1-A32 D1-A50 D1-A1-M6 D1-A31 D1-A4-M12 D1-A12 D1-A30 D1-A42 D1-B14 D1-B26 D1-B38 D1-B12 D1-B4-M12 D1-B24 D1-B36 D1-B5-M16 D1-B48 D1-B22 D1-B34 D1-B58 D1-B46 D1-B1-M6 D1-B32 D1-B56 D1-B44 D1-B18 D1-B2-M8 D1-B54 D1-B16 D1-B28 D1-B52 D1-B3-M10

D1 Zinc Alloy Adjustable Handles

Material: Zinc Alloy

Finish: Black

• This zinc alloy handle can be rotated to the desired position. When handle is lifted, the teeth are disengaged for re-positioning. Release of the handle will re-engage the teeth for tightening or loosening action.
• Easily repositioned out of the way to a convenient position for maximum leverage.
• Choice of five handle sizes, tapped or stud type.

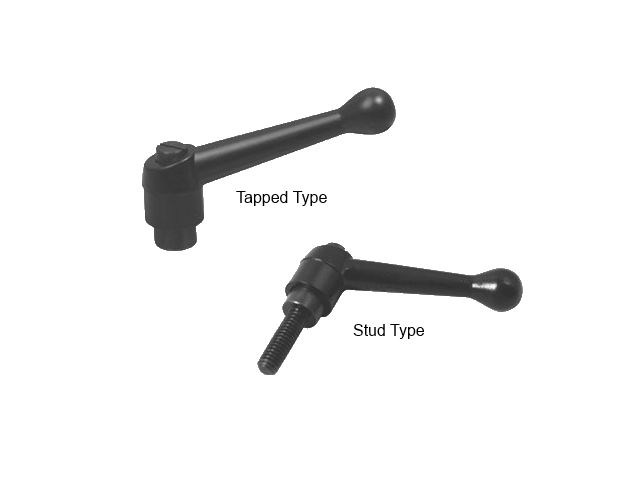

Tapped Type

Part No.	A	B	D	E	F	H	J	M
D1-A10	1/8 Ream	5/16	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-A11	#10-24	5/16	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-A12	1/4-20	5/16	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-A1-M6	M6	5/16	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-A20	1/8 Ream	7/16	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-A21	1/4-20	7/16	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-A22	5/16-18	7/16	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-A2-M8	M8	7/16	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-A30	1/4 Ream	1/2	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-A31	5/16-18	1/2	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-A32	3/8-16	1/2	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-A3-M10	M10	1/2	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-A40	5/16 Ream	5/8	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-A41	3/8-16	5/8	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-A42	1/2-13	5/8	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-A4-M12	M12	5/8	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-A50	3/8 Ream	7/8	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-A51	1/2-13	7/8	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-A52	5/8-11	7/8	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-A5-M16	M16	7/8	1-1/14	29/32	15/32	3-1/8	2"	4-5/16

Stud Type

Part No.	A	C	D	E	F	H	J	M
D1-B12	1/4-20	1/2	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-B14	1/4-20	3/4	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-B16	1/4-20	1"	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-B18	1/4-20	1-1/2	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-B1-M6	M6	* max 1-1/2	17/32	25/64	5/32	1-15/16	31/32	1-19/32
D1-B22	5/16-18	3/4	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-B24	5/16-18	1"	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-B26	5/16-18	1-1/2	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-B28	5/16-18	2"	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-B2-M8	M8	* max 2"	3/4	17/32	1/4	1-13/16	1-1/8	2-9/16
D1-B32	3/8-16	3/4	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-B34	3/8-16	1"	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-B36	3/8-16	1-1/2	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-B38	3/8-16	2"	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-B3-M10	M10	* max 2"	7/8	5/8	13/32	2-5/16	1-1/2	3-1/8
D1-B42	1/2-13	1"	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-B44	1/2-13	1-1/2	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-B46	1/2-13	2"	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-B48	1/2-13	2-1/2	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-B4-M12	M12	* max 3"	1"	3/4	13/32	2-5/8	1-11/16	3-3/4
D1-B52	5/8-11	1-1/2	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-B54	5/8-11	2"	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-B56	5/8-11	2-1/2	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-B58	5/8-11	3"	1-1/14	29/32	15/32	3-1/8	2"	4-5/16
D1-B5-M16	M16	* max 3"	1-1/14	29/32	15/32	3-1/8	2"	4-5/16

* Cut threaded stud to suit your application
