Pneumatic Power Clamps - 2
All these fast acting air clamps use standard toggle clamps as the basic platform. All have 1/8 NPT port standard. Maximum air pressure allowed in the cylinder is 140 PSI.

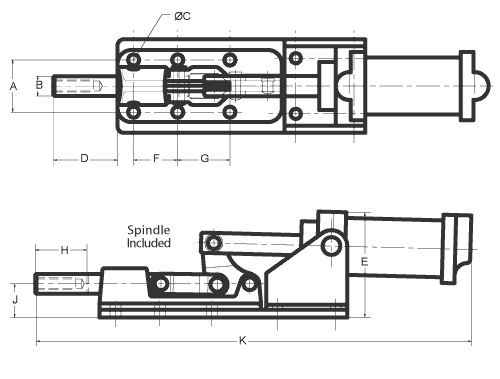

| Model Number | Basic Model | Holding Capacity | Spindle Supplied | Cylinder Bore | Cylinder Stroke | A | B | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

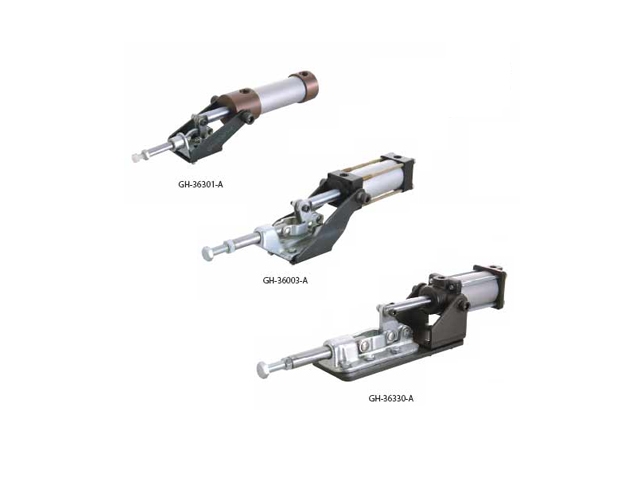

| GH-36301-A | GH-301-A | 100 LBS (454 kg) | GH-SA-08034 | 0.75 (20) | 1.24 in. (31.4 mm) | 0.63 (15.9) | 0.25 (6.4) | 0.17 (4.4) | 1.27 (32.2) | 1.57 (40) | 0.63 (15.9) | - | 0.47 (12) | 0.54 (13.6) | 7.36 (187) |
| GH-36003-A | GH-36003 | 600 LBS (273 kg) | GH-SA-56200 | 1.18 (30) | 2.78 in. (70.7 mm) | 1.31 (33.3) | 0.44 (11.1) | 0.22 (5.6) | 2.28 (58) | 2.74 (69.5) | 1.44 (36.5) | - | 0.78 (19.7) | 1.09 (27.7) | 9.84 (250) |
| GH-36330-A | GH-36330 | 2,500 LBS (1,136 kg) | GH-SA-38300 | 1.57 (40) | 4.94 in. (125.5 mm) | 1.63 (41.3) | 0.63 (15.9) | 0.34 (8.7) | 2.03 (51.5) | 3.30 (84) | 1.37 (34.9) | 1.63 (41.3) | 1.18 (30) | 1.05 (26.6) | 13.66 (347) |
UNIT: inch (metric mm)
