Pneumatic Power Clamps - Chapter 1

Brand: Good Hand
Product Code: Pneumatic Power Clamps - Chapter 1
Availability: In Stock

Price: RM0.00

Available Options

* Pneumatic Power Clamps Chapter 1:
--- Please Select --- GH-10101-A GH-12050-A GH-12130-A GH-12132-A GH-12265-A GH-12275-A GH-10247-A GH-10249-A GH-20820-A

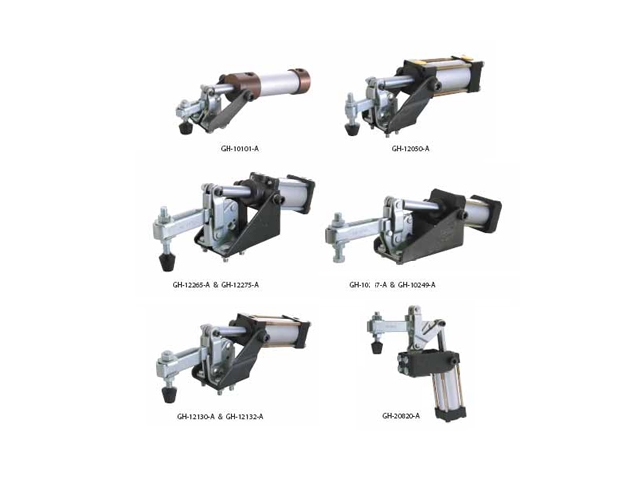

Pneumatic Power Clamps - 1

All these fast acting air clamps use standard toggle clamps as the basic platform. All have 1/8 NPT port standard. Maximum air pressure allowed in the cylinder is 140 PSI.

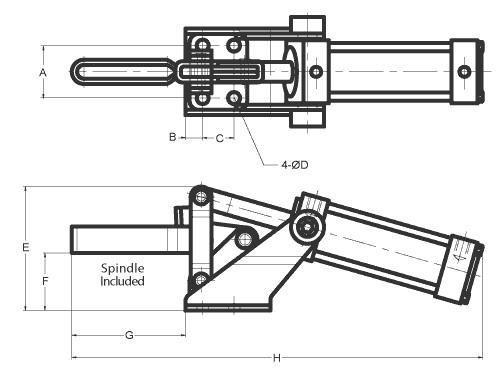

Model Number	Basic Model	Holding Capacity	Spindle Supplied	Bar Opens	Cylinder Bore	Cylinder Stroke	A	B	C	D	E	F	G	H
GH-10101-A	GH-101-A	150 LBS (68 kg)	GH-FC-10138	82°	0.78 (20)	1.24 in. (31.4 mm)	0.94 (23.8)	0.20 (4.8)	0.63 (15.9)	0.13 (4.4)	1.60 (40.7)	0.69 (17.5)	0.94 (24)	6.63 (168.5)
GH-12050-A	GH-12050	200 LBS (90 kg)	GH-FC-14134	95°	1.18 (30)	2.78 in. (70.7 mm)	1.06 (27)	0.25 (6.3)	0.50 (12.7)	0.20 (5.2)	2.19 (55.7)	1.06 (27)	1.38 (35)	7.28 (185)
GH-12130-A	GH-12130	350 LBS (160 kg)	GH-FC-56212	92°	1.18 (30)	2.78 in. (70.7 mm)	1.26 (32)	0.39 (10)	0.75 (19)	0.28 (7.1)	2.97 (75.4)	1.33 (33.8)	2.68 (68)	9.31 (236.5)
GH-12132-A	GH-12132	350 LBS (160 kg)	GH-FC-56212	92°	1.18 (30)	2.78 in. (70.7 mm)	1.26 (32)	0.39 (10)	0.75 (19)	0.28 (7.1)	2.97 (75.4)	1.35 (34.2)	3.47 (88.2)	10.24 (260)
GH-12265-A	GH-12265	600 LBS (272 kg)	GH-FC-38312	95°	1.57 (40)	4.94 in. (125.6 mm)	1.78 (45.2)	0.37 (9.5)	1.25 (31.8)	0.33 (8.3)	3.69 (93.7)	1.75 (44.2)	3.47 (88.2)	15.43 (392)
GH-12275-A	GH-12275	600 LBS (272 kg)	GH-FC-38312	95°	1.57 (40)	4.94 in. (125.6 mm)	1.78 (45.2)	0.37 (9.5)	1.25 (31.8)	0.33 (8.3)	3.69 (93.7)	1.75 (44.2)	3.47 (88.2)	11.89 (302)
GH-10247-A	GH-10247	800 LBS (364 kg)	GH-FC-12300	95°	2 (50)	7.73 in. (196.3 mm)	1.78 (45.2)	0.74 (19)	1.25 (31.8)	0.33 (8.3)	4.33 (110)	2.18 (55.3)	4.52 (114.8)	16.02 (407)
GH-10249-A	GH-10249	800 LBS (364 kg)	GH-FC-12300	95°	2 (50)	7.73 in. (196.3 mm)	1.78 (45.2)	0.74 (19)	1.25 (31.8)	0.33 (8.3)	4.33 (110)	2.18 (55.3)	4.52 (114.8)	16.02 (407)
GH-20820-A	GH-20820	350 LBS (160 kg)	GH-FC-56212	90°	1.18 (30)	2.78 in. (70.7 mm)	0.98 (25)	0.65 (17)	0.63 (16)	0.28 (7)	7.68 (195)	2.75 (70)	2.36 (60)	6.50 (165)

UNIT: inch (metric mm)
