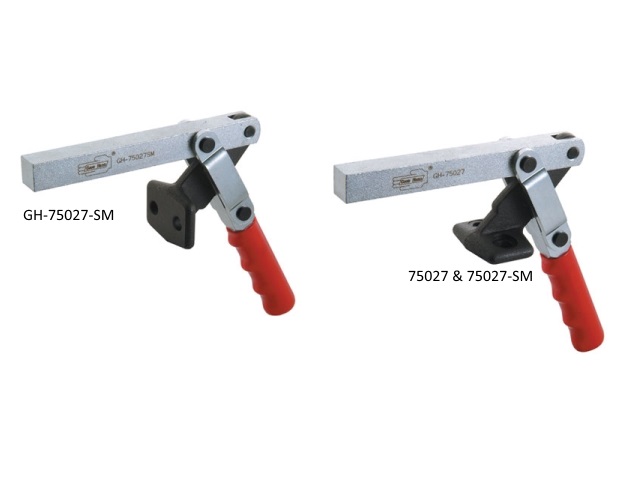

75027 & 75027-SM
75027 & 75027-SM
Cross Ref.: DE-STA-CO Model 527 & 527-F
Holding Capacity: 1,000 LBS. (450 kg)
Weight: 2.51 LBS. (1,140 g)
Bar Opens: 195°
Handle Moves: 65°
GH-75027
| Model Number | A | B | C | D | E |
|---|---|---|---|---|---|
| GH-75027 | 0.75 (19) | 0.75 (19) | 1.50 (38) | 0.41 (10.3) | 0.69 (17.5) |
UNIT: inch (metric mm)

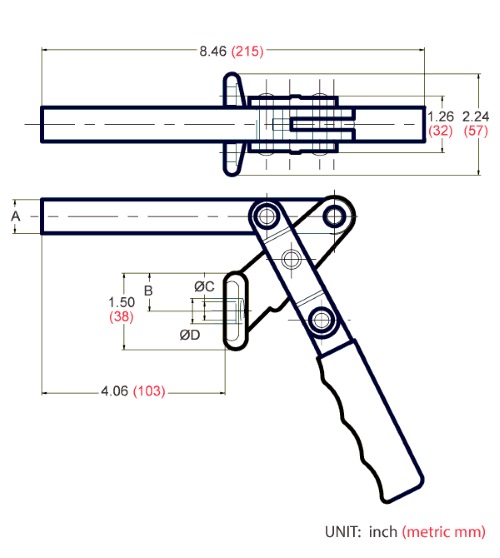

GH-75027-SM
| Model Number | A | B | C | D |
|---|---|---|---|---|
| GH-75027-SM | 0.75 (19) |
0.75 (19) |
0.41 (10.3) |
0.69 (17.5) |
UNIT: inch (metric mm)
