Series 701 & 702

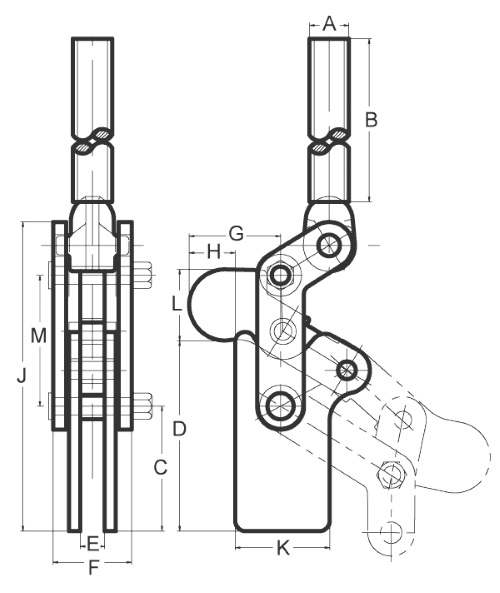

Series 701

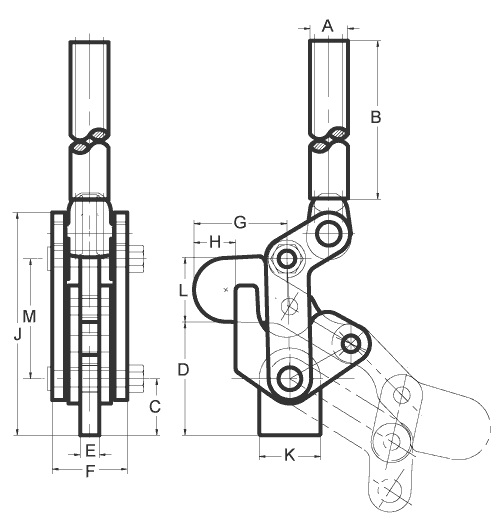

Series 702
Series 701 & 702

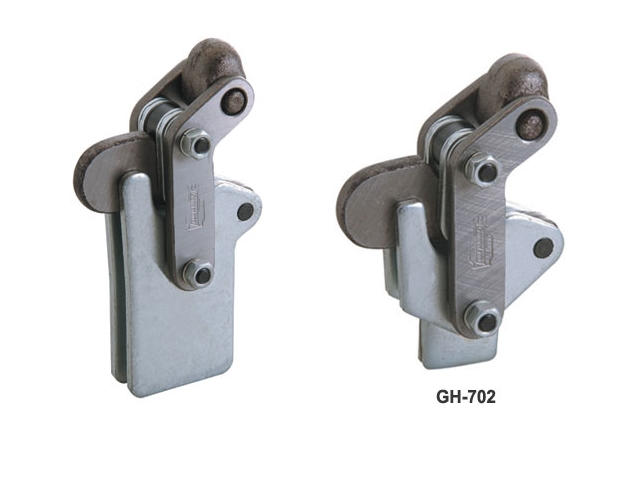

These heavy-duty clamps provide the strong, durable holding power to meet the requirements of the auto industry. These clamps are forged from alloy steel, hardened, and ground to close tolerance. Pins are also hardened and grounded. A separate handle is included with each clamp for welding in the desired position.
| Model Number | Holding Capacity | Arm Opens | Handle Opens | A | B | C | D | E | F | G | H | J | K | L | M | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GH-701-C | 440 LBS. (200 kg) |
194° | 123° | 0.68 (17.3) |
6" (152.4) |
1.96 (50) |
0.57 (14.4) |
0.31 (8) |
1.25 (31.8) |
1.57 (40) |
0.67 (17) |
4.75 (121) |
1.75 (44.5) |
1.10 (28) |
2" (50.8) |
1.32 LBS. (600 g) |
| GH-701-D | 1,100 LBS. (500 kg) |
191° | 122° | 0.85 (21.7) |
6" (152.4) |
2.69 (68.3) |
4" (102) |
0.51 (13) |
1.65 (42) |
1.92 (48.8) |
0.97 (24.6) |
6.50 (165) |
1.97 (50) |
1.54 (39) |
2.75 (70) |
3.50 LBS. (1,587 g) |
| GH-701-K | 2,200 LBS. (1,000 kg) |
197° | 128° | 1.07 (27.2) |
6" (152.4) |
3.15 (80) |
4.84 (123) |
0.63 (16) |
1.81 (46) |
2.09 (53.3) |
0.98 (25) |
8.07 (205) |
2.48 (63) |
2.05 (52) |
3.54 (90) |
5.84 LBS. (2,650 g) |
| GH-702-C | 440 LBS. (200 kg) |
194° | 123° | 0.68 (17.3) |
6" (152.4) |
0.94 (24) |
1.89 (48) |
0.31 (8) |
1.25 (31.8) |
1.57 (40) |
0.67 (17) |
3.66 (93) |
1.02 (26) |
1.10 (28) |
2" (50.8) |
1.50 LBS. (680 g) |
| GH-702-D | 1,100 LBS. (500 kg) |
191° | 122° | 0.85 (21.7) |
6" (152.4) |
1.33 (33.7) |
2.72 (69) |
0.51 (13) |
1.65 (42) |
1.92 (48.8) |
0.97 (24.6) |
5.20 (132) |
1.43 (36.4) |
1.54 (39) |
2.75 (70) |
3.24 LBS. (1,469 g) |
| GH-702-K | 2,200 LBS. (1,000 kg) |
197° | 128° | 1.07 (27.2) |
6" (152.4) |
1.46 (37.2) |
3.30 (84) |
0.63 (16) |
1.81 (46) |
2.09 (53.3) |
0.98 (25) |
6.57 (167) |
2.13 (54) |
2.05 (52) |
3.54 (90) |
5.75 LBS. (2,608 g) |
UNIT: inch (metric mm)
