30509 & 30609
30509 & 30609

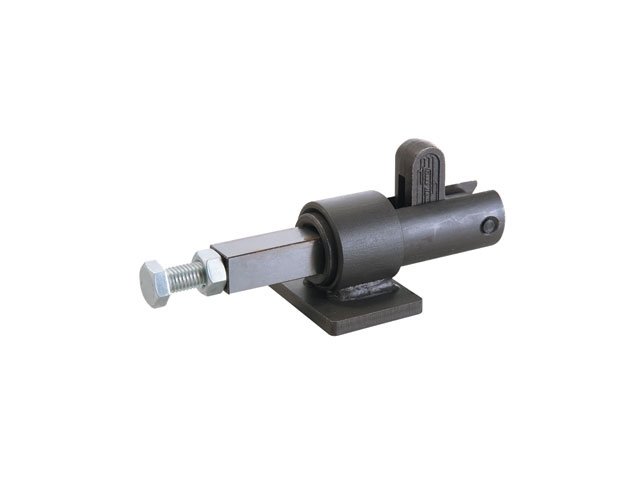

Heavy Duty Models
High strength steel construction, broached body and precise ground plunger.
Hardened steel pins and bushings are used for pivot joints.
Supplied with separate handle and base. Users can weld them at desired position.
These clamps can be mounted using base (supplied) or by drilling a hole in fixture and welding in place.
Clamp handle can be rotated to any position.
Compact design with maximum plunger travel. Plunger locks in extended position only.

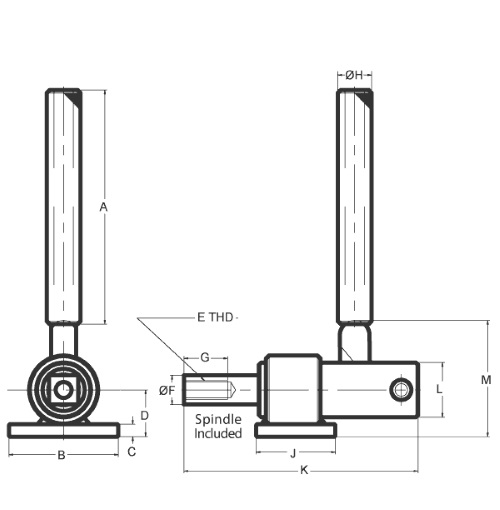

| Model Number | Holding Capacity | Spindle Supplied | Plunger Stroke | A | B | C | D | E | F | G | H | J | K | L | M | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GH-30509 | 2,500 LBS. (1,136 kg) |
GH-SA-12300 | 1.81 (46) |
6" (152.4) |
2.76 (70) |
0.31 (8) |
1.19 (30) |
7/16-14 (M12 x 1.75) |
0.75 (19) |
1" (25.4) |
0.85 (21.7) |
2" (50.8) |
5.91 (150) |
1.37 (34.9) |
2.91 (74) |
2.93 LBS. (1,330 g) |
| GH-30609 | 5,000 LBS. (2,273 kg) |
GH-SA-58500 | 2.34 (60) |
6" (152.4) |
3.56 (90.5) |
0.44 (11.2) |
1.58 (40) |
5/8-11 (M16 x 2) |
1" (25.4) |
1.5 (38.1) |
1.07 (27.2) |
2.69 (68.3) |
7.80 (198) |
1.75 (44.4) |
3.43 (87) |
6.22 LBS. (2,820 g) |
UNIT: inch (metric mm)
