36330
36330
Cross Ref.: DE-STA-CO Model 630
Holding Capacity: 2,500 LBS. (1135 kg)
Weight: 2.06 LB. (935 g)
Handle opens: 180°
Plunger stroke: 2" (50.8 mm)
Spindle supplied: GH-SA-38300
Accepts all 3/8-16 diameter spindles

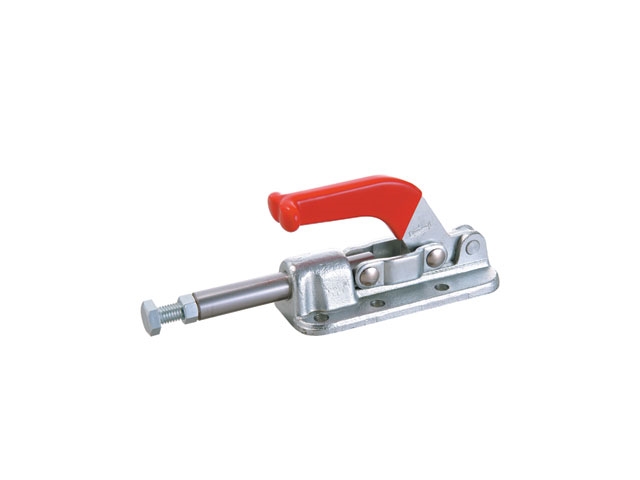

This heavy duty clamp has a forged alloy steel base.

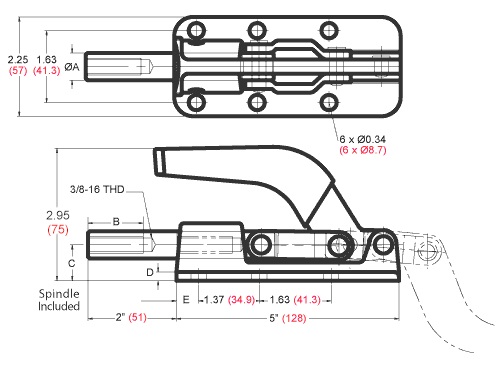

| Model Number | A | B | C | D | E |
|---|---|---|---|---|---|
| GH-36330 | 0.62 (15.9) | 1.26 (32) | 0.81 (20.6) | 0.24 (6) | 0.50 (12.7) |
UNIT: inch (metric mm)
