36003
36003
Cross Ref.: DE-STA-CO Model 603
Holding Capacity: 600 LBS. (272 kg)
Weight: 0.78 LB. (355 g)
Handle opens: 180°
Plunger stroke: 1.25" (31.8 mm)
Spindle supplied: GH-SA-56200

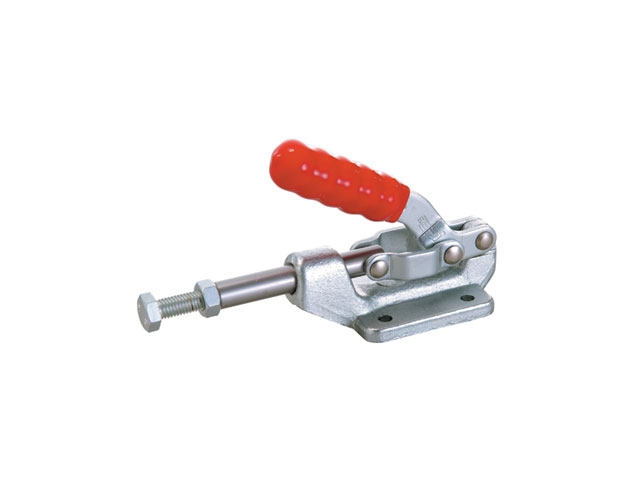

Accepts all 5/16-18 diamter spindles This clamp has a forged alloy steel base, and lower profile handle.

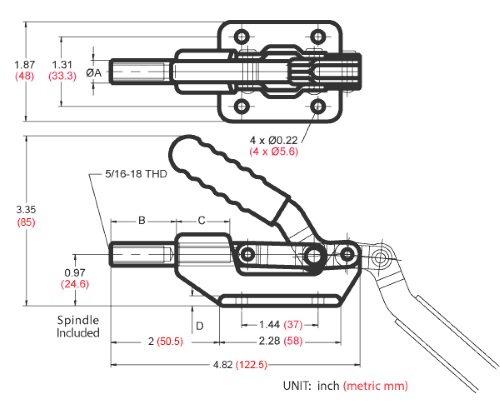

| Model Number | A | B | C | D |
|---|---|---|---|---|
| GH-36003 | 0.44 (10.9) | 1.25 (31.8) | 1" (25.4) | 0.19 (4.8) |
UNIT: inch (metric mm)
