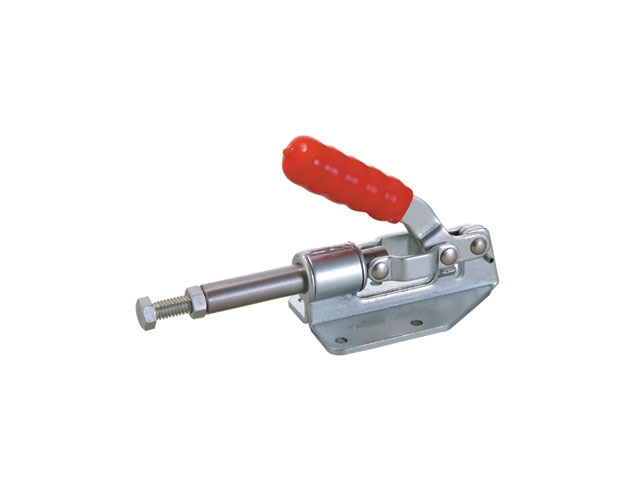

36092
36092
Cross Ref.: DE-STA-CO Model 609
Holding Capacity: 400 LBS. (180 kg)
Weight: 0.85 LB. (397 g)
Handle opens: 180°
Plunger stroke: 1.25" (31.8 mm)
Spindle supplied: GH-SA-56200
Accepts all 5/16-18 diameter spindles
Similar to GH-302-F. Addition of safety pins minimizes finger pinch.

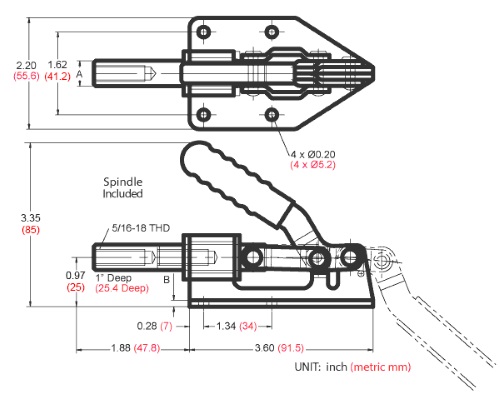

| Model Number | A | B |
|---|---|---|
| GH-36092 | 0.50 (12.7) | 0.12 (3) |
UNIT: inch (metric mm)
