301-A & 301-B
301-A & 301-B
Cross Ref.: DE-STA-CO Model 601
Holding Capacity: 100 LBS. (45 kg)
Weight: 0.11 LB. (50 g)
Handle opens: 190°
Plunger stroke: 0.63" (15.9 mm)
Spindle supplied: GH-SA-08034 (Nylon)

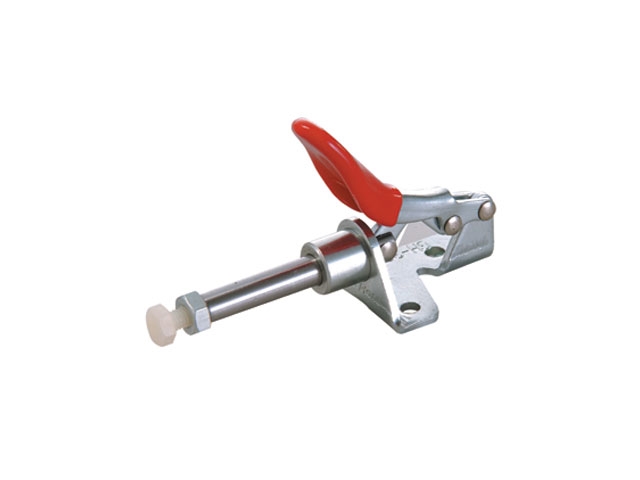

Economical, miniature push-pull clamp with long plunger stroke.

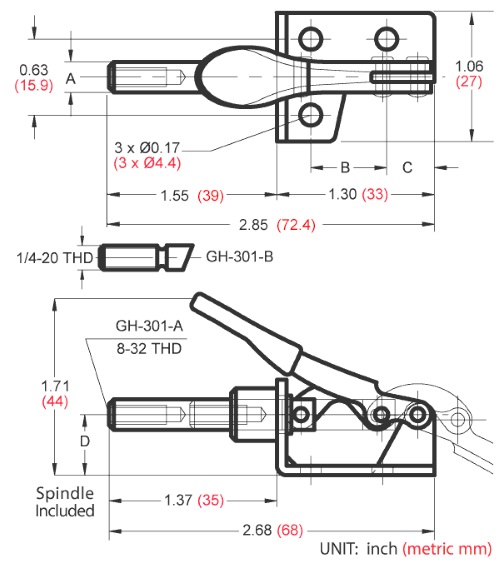

| Model Number | Description | A | B | C | D |
|---|---|---|---|---|---|
| GH-301-A | 8-32 Thread | 0.25 (6.4) | 0.63 (15.9) | 0.39 (10) | 0.50 (12.7) |
| GH-301-B | 1/4-20 Thread | 0.25 (6.4) | 0.63 (15.9) | 0.39 (10) | 0.50 (12.7) |
UNIT: inch (metric mm)
