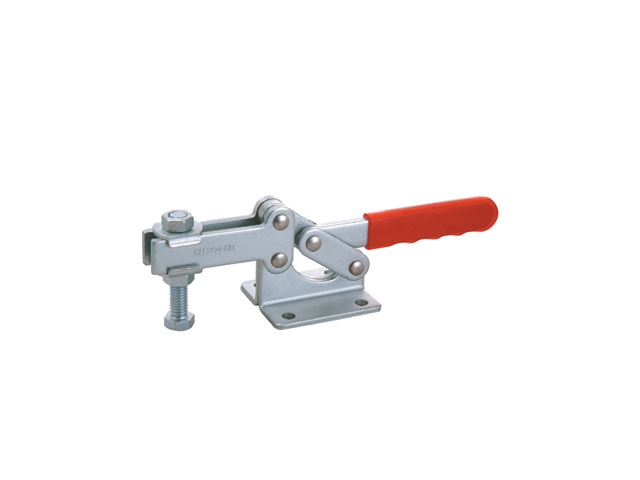

Series 204-GB
Series 204-GB
Holding Capacity: 1,400 LBS. (630 kg)
Bar opens: 91°, Handle 94°
Spindle Supplied: GH-SA-12300
This clamp is based on the GH-204-G design, without the cast iron base.

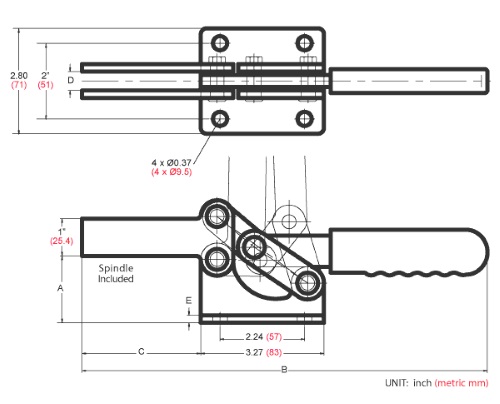

| Model Number | Description | A | B | C | D | E | Weight |
|---|---|---|---|---|---|---|---|
| GH-204-GB | Short Bar, Low Base | 1.77 (45) | 10.59 (269) | 3.15 (80) | 0.50 (12.7) | 0.24 (6) | 2.60 LBS. (1,180 g) |
| GH-204-GBL | Long Bar, Low Base | 1.77 (45) | 12.44 (316) | 5" (127) | 0.50 (12.7) | 0.24 (6) | 2.78 LBS. (1,260 g) |
| GH-204-GBLH | Long Bar, High Base | 2.79 (71) | 12.44 (316) | 5" (127) | 0.50 (12.7) | 0.24 (6) | 3.23 LBS. (1,465 g) |
UNIT: inch (metric mm)
