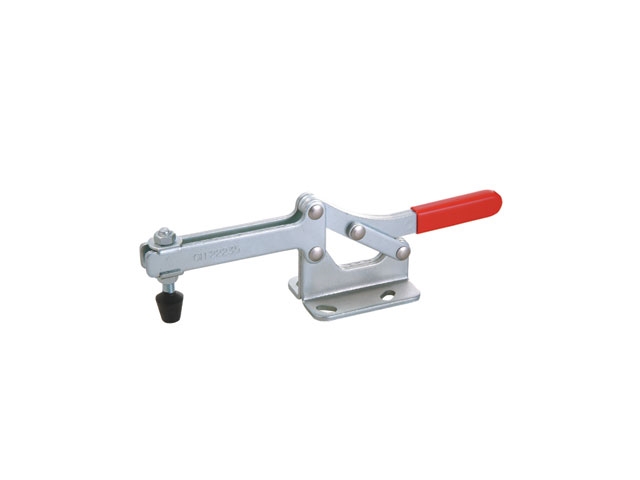

22235
22235
Holding Capacity: 600 LBS. (273 kg)
Weight: 1.41 LBS. (640 g)
Bar opens: 111°, Handle 94°
Spindle Supplied: GH-FC-56212

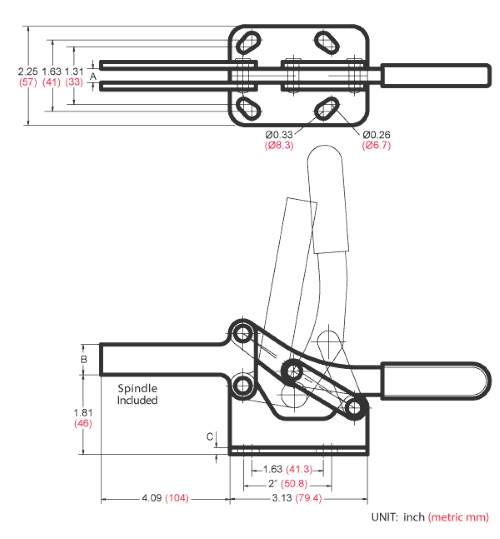

Model Number | A | B | C |
---|---|---|---|
GH-22235 | 0.31 (8) | 0.69 (17.5) | 0.16 (4) |
UNIT: inch (metric mm)
Holding Capacity: 600 LBS. (273 kg)
Weight: 1.41 LBS. (640 g)
Bar opens: 111°, Handle 94°
Spindle Supplied: GH-FC-56212
Model Number | A | B | C |
---|---|---|---|
GH-22235 | 0.31 (8) | 0.69 (17.5) | 0.16 (4) |
UNIT: inch (metric mm)
