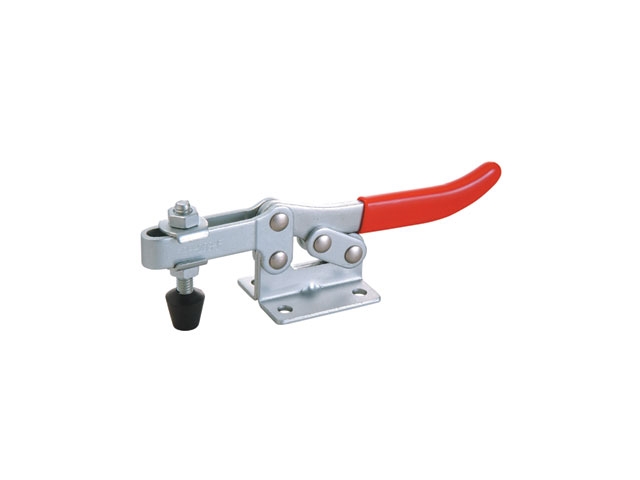

Series 203-F & 202-F
Series 203-F & 202-F
Holding Capacity: 500 LBS. (227 kg)
Bar opens: 85°, Handle 58°
Spindle Supplied: GH-FC-56212

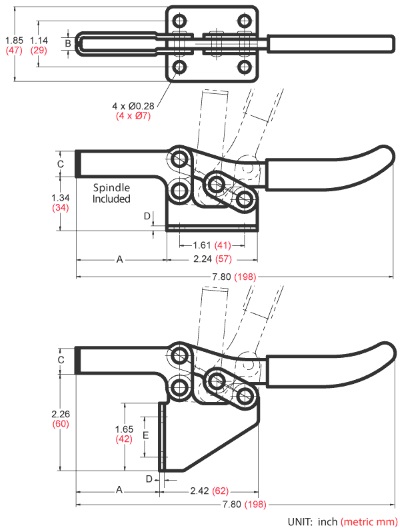

| Model Number | Description | A | B | C | D | E | Weight |
|---|---|---|---|---|---|---|---|
| GH-202-F | U-Bar, Side Mounted | 2.05 (52) |
0.31 (8) |
0.63 (16) |
0.12 (3) |
1" (25.4) |
0.85 LB. (385 g) |
| GH-202-FL | Long U-Bar, Side Mounted | 3.50 (89) |
0.31 (8) |
0.63 (16) |
0.12 (3) |
1" (25.4) |
0.94 LB. (425 g) |
| GH-203-F | U-Bar, Flanged Base | 2.24 (57) |
0.31 (8) |
0.63 (16) |
0.12 (3) |
1" (25.4) |
0.75 LB. (340 g) |
| GH-203-FL | Long U-Bar, Flanged Base | 3.70 (94) |
0.31 (8) |
0.63 (16) |
0.12 (3) |
1" (25.4) |
0.84 LB. (380 g) |
UNIT: inch (metric mm)
