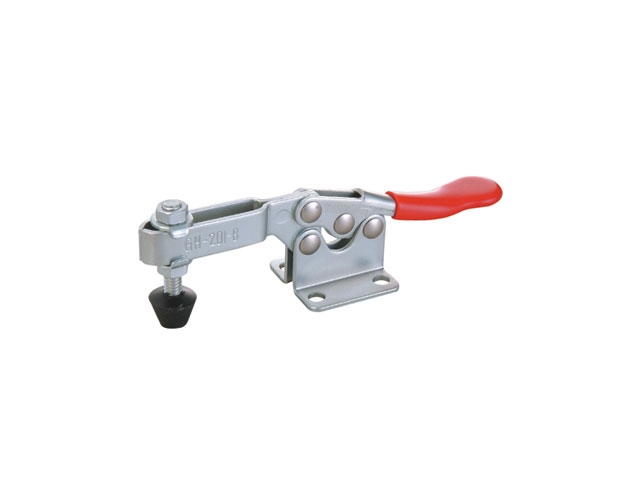

Series 201-B
Series 201-B - Popular!
Cross Ref.: DE-STA-CO Series 215
Holding Capacity: 200 LBS. (90 kg)
Weight: 0.29 LB. (130 g)
Bar opens: 85°, Handle 60°
Spindle Supplied: GH-FC-14134

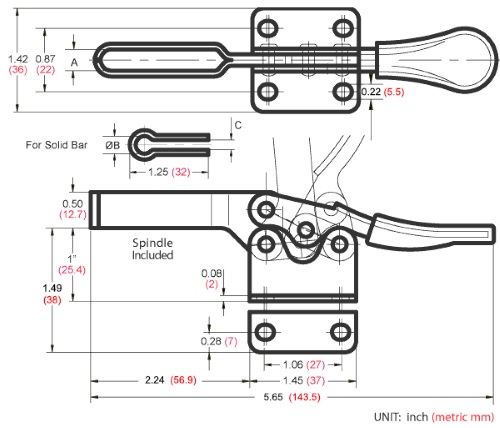

| Model Number | Description | A | B | C |
|---|---|---|---|---|
| GH-201-B | U-Bar, Flanged Base | 0.45 (7.4) | 0.28 (7.1) | 0.16 (4) |
| GH-201-BI | U-Bar, Straight Base | 0.29 (7.4) | 0.28 (7.1) | 0.25 (6.4) |
| GH-201-BS | Solid Bar, Flanged Base | 0.29 (7.4) | 0.28 (7.1) | 0.25 (6.4) |
| GH-201-BSI | Solid Bar, Straight Base | 0.29 (7.4) | 0.28 (7.1) | 0.25 (6.4) |
| GH-201-BSS | Stainless Steel Model of GH-201-B | 0.29 (7.4) | 0.28 (7.1) | 0.25 (6.4) |
UNIT: inch (metric mm)
