Series 201
Series 201
Cross Ref.: DE-STA-CO Series 205
Holding Capacity: 60 LBS. (27 kg)
Weight: 0.09 LB. (40 g)
Bar opens: 90°, Handle 80°
Spindle Supplied: GH-SA-08034 (Nylon)

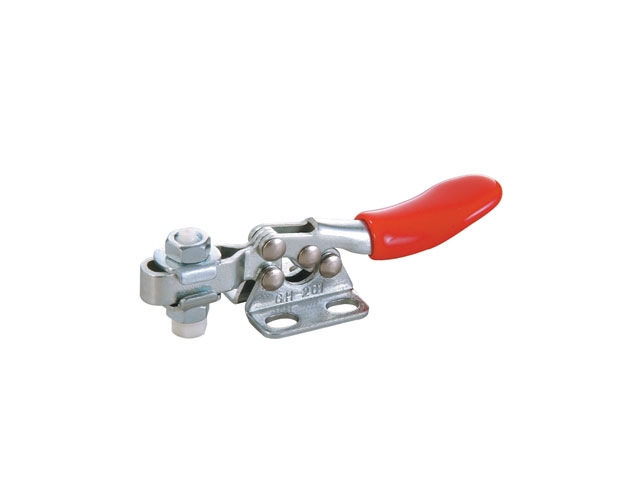

This compact clamp is the most economical horizontal toggle clamp. Most suitable for holding down sheet metal or circuit boards. Many spindle bar and base combinations available.

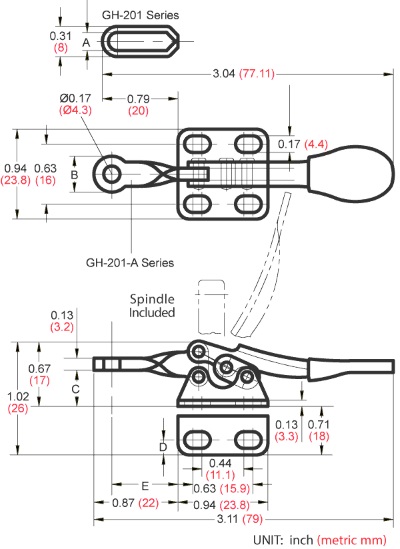

| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| ALL | 0.19 (4.83) |
0.37 (9.4) |
0.37 (9.4) |
0.16 (3.95) |
0.69 (17.5) |
UNIT: inch (metric mm)
| Model Number | Description |
|---|---|
| GH-201 | U-Bar, Flanged Base |
| GH-201-A | Fixed Bar, Flanged Base |
| GH-201-AI | Fixed Bar, Straight Base |
| GH-201-AL | Fixed Bar, Left Hand Flanged Base |
| GH-201-AR | Fixed Bar, Right Hand Flanged Base |
| GH-201-ASS | Stainless Steel Model of GH-201-A |
| GH-201-I | U-Bar, Straight Base |
| GH-201-L | U-Bar, Left Hand Flanged Base |
| GH-201-R | U-Bar, Right Hand Flanged Base |
| GH-201-SS | Stainless Steel Model of GH-201 |
