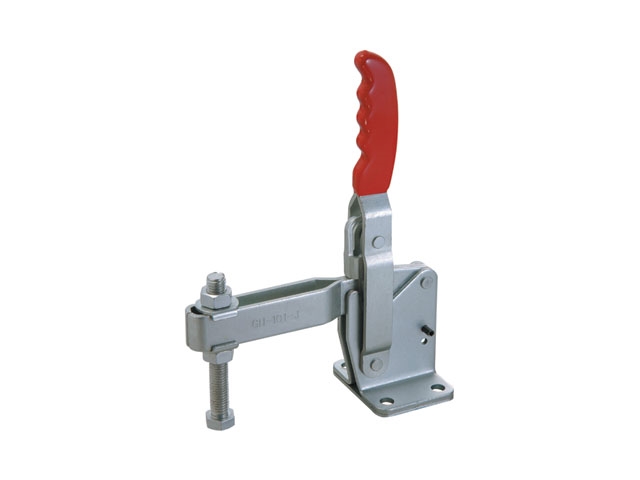

Series 101-J
Series 101-J
Cross Ref. : DE-STA-CO Series 267
Holding Capacity: 1,200 LBS. (550 kg)
Weight: 5.6 LB. (2,540 g)
Bar opens 100°, Handle 48° (with roll pin on top)
Bar opens 140°, Handle 60° (with roll pin on bottom)
Spindle Supplied: GH-SA-58500
Hardened bushings and removable ground pins

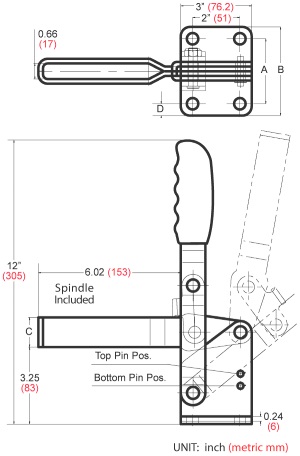

| Model | A | B | C | D |
|---|---|---|---|---|
| ALL | 2.75 (70) |
3.75 (95.2) |
1.25 (31.8) |
0.50 (13) |
UNIT: inch (metric mm)
| Model Number | Description |
|---|---|
| GH-101-J | U-Bar, Flanged Base |
| GH-101-JS | Solid Bar, Flanged Base |
