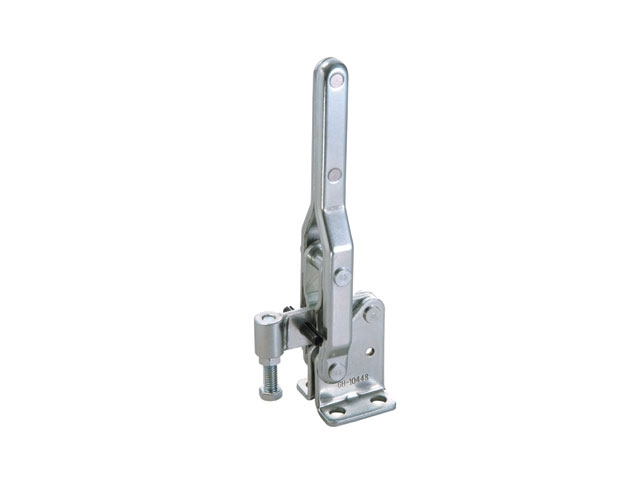

Series 10444
Series 10444 - Welder's Choice!
Holding Capacity: 880 LBS. (400 kg)
Bar opens: 85°, Handle 58°
Spindle Supplied: GH-SA-38300
Hardened bushings and removable ground pins
This rugged yet smooth fuctioning clamp is designed for use in ovens. It has a rounded handle with no plastic cover.

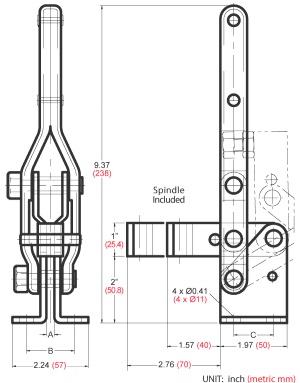

| Model | Description | A | B | C | Weight |
|---|---|---|---|---|---|
| GH-10444 | Long Bar | 0.24 (6) | 1.42 (36) | 1.18 (30) | 1.92 LBS. (870 g) |
| GH-10448 | Short Bar | 0.24 (6) | 1.42 (36) | 1.18 (30) | 1.85 LBS. (840 g) |
UNIT: inch (metric mm)
