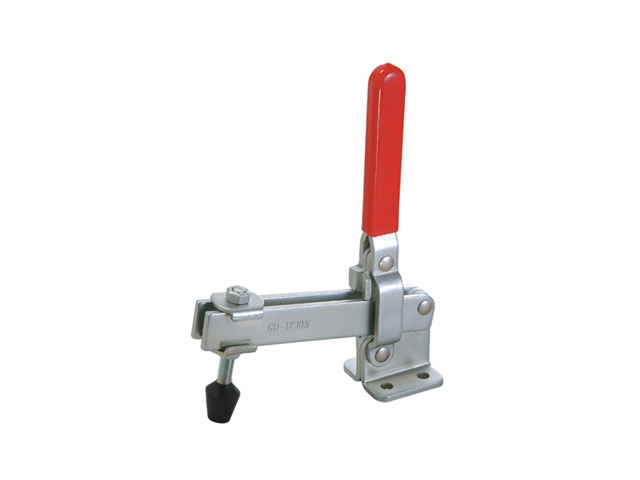

Series 12305
Series 12305
Holding Capacity: 750 lbs. (364 kg)
Weight: 2.18 lbs. (990 g)
Bar opens 100º, Handle 65º
Spindle Supplied: GH-FC-38312
Note the angular spindle bar. Available with open or solid spindle bars. Solid bar can be shortened, and the supplied bolt retainer welded on. Angular bar keeps the overall height low, yet bar clearance high| Model Number | Description |
|---|---|
| GH-12305 | Open bar, Flanged Base |
| GH-12310 | Open Bar, Straight Base |
| GH-12315 | Solid Bar, Flanged Base |
| GH-12320 | Solid Bar, Straight Base |

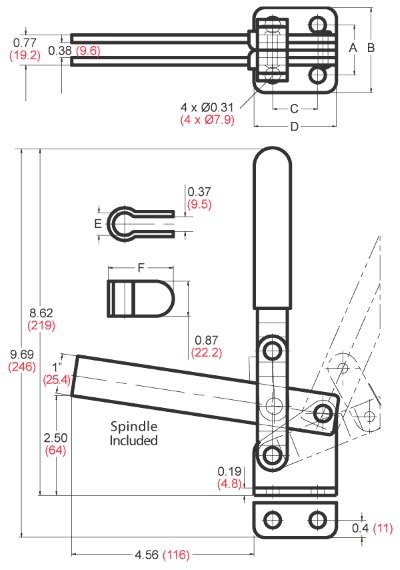

| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| ALL | 1.25 (31.8) |
2.13 (54) |
1.13 (28.6) |
2.06 (52.4) |
0.56 (14.3) |
1.63 (41.3) |
UNIT: inch (metric mm)
