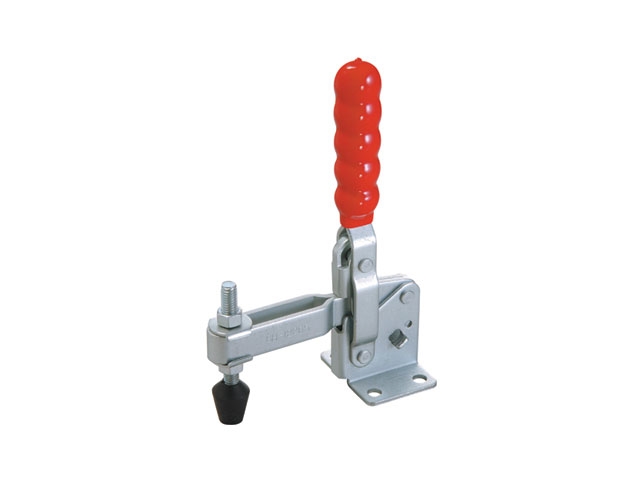

Series 12265
Series 12265 - Popular!
Cross Ref. : DE-STA-CO Series 210
Holding Capacity: 750 LBS. (340 kg)
Bar opens 105°, Handle 58°
Spindle Supplied: GH-FC-38312
Hardened bushings and removable ground pins
| Model Number | Description | Weight |
|---|---|---|
| GH-12265 | U-Bar, Flanged Base, Straight Handle | 1.40 LBS. (635 g) |
| GH-12265-SS | Stainless Steel Model of GH-12265 | |
| GH-12270 | U-Bar, Straight Base, Straight Handle | 1.40 LBS. (635 g) |
| GH-12275 | Solid Bar, Flanged Base, Straight Handle | 1.50 LBS. (680 g) |
| GH-12280 | Solid Bar, Straight Base, Straight Handle | 1.50 LBS. (680 g) |
| GH-12285 | U-Bar, Flanged Base, T-Handle | 1.57 LBS. (710 g) |
| GH-12290 | U-Bar, Straight Base, T-Handle | 1.57 LBS. (710 g) |
| GH-12295 | Solid Bar, Flanged Base, T-Handle | 1.62 LBS. (735 g) |
| GH-12300 | Solid Bar, Straight Base, T-Handle | 1.62 LBS. (735 g) |

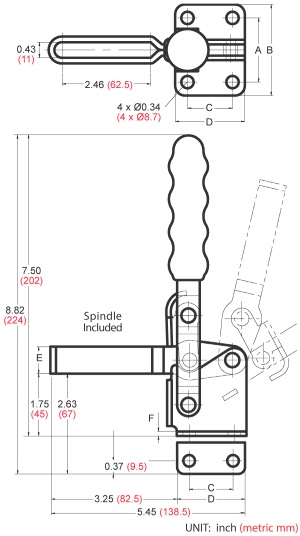

| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| ALL | 1.78 (45.3) |
2.53 (64.3) |
1.25 (31.8) |
1.94 (49.2) |
0.75 (19) |
0.13 (3.2) |
UNIT: inch (metric mm)
