Series 12130
Series 12130
Cross Ref. : DE-STA-CO Series 207
Holding Capacity: 500 LBS. (227 kg)
Bar opens 100°, Handle 60°
Spindle Supplied: GH-FC-56212
Expanded Selection. This is the most popular vertical handle toggle clamps. Many options are available.| Model Number | Description | Weight |
|---|---|---|

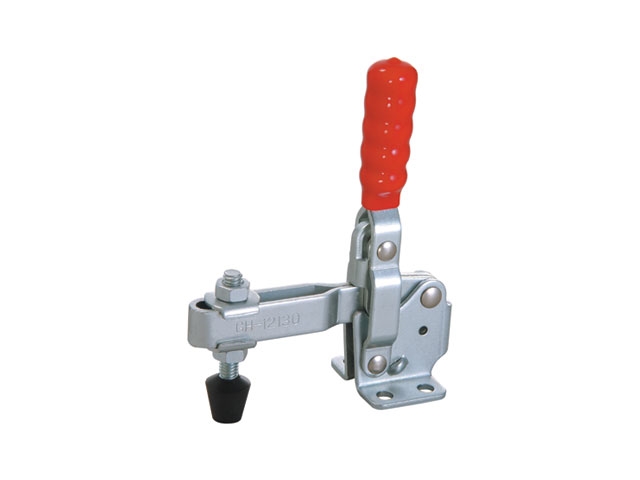

| GH-12130 | Short U-Bar, Flanged Base, Straight Handle | 0.78 LB. (355 g) |
| GH-12130-SS | Stainless Steel Model of GH-12130 | |
| GH-12131 | Short U-bar, Flanged Base, T-Handle | 0.81 LB. (370 g) |
| GH-12132 | Long U-Bar, Flanged Base, Straight Handle | 0.81 LB. (370 g) |
| GH-12133 | Long U-Bar, Flanged Base, T-Handle | 0.88 LB. (400 g) |
| GH-12135 | Short U-Bar, Straight Base, Straight Handle | 0.78 LB. (355 g) |
| GH-12136 | Short U-Bar, Straight Base, T-Handle | 0.81 LB. (370 g) |
| GH-12137 | Long U-Bar, Straight Base, Straight Handle | 0.81 LB. (370 g) |
| GH-12138 | Long U-Bar, Straight Base, T-Handle | 0.88 LB. (400 g) |
| GH-12140 | Short Solid Bar, Flanged Base, Straight Handle | 0.75 LB. (340 g) |
| GH-12141 | Short Solid Bar, Flanged Base, T-Handle | 0.78 LB. (355 g) |
| GH-12142 | Long Solid Bar, Flanged Base, Straight Handle | 0.78 LB. (355 g) |
| GH-12143 | Long Solid Bar, Flanged Base, T-Handle | 0.81 LB. (375 g) |
| GH-12145 | Short Solid Bar, Straight Base, Straight Handle | 0.75 LB. (340 g) |
| GH-12146 | Short Solid Bar, Straight Base, T-Handle | 0.78 LB. (355 g) |
| GH-12147 | Long Solid Bar, Straight Base, Straight Handle | 0.78 LB. (355 g) |
| GH-12148 | Long Solid Bar, Straight Base, T-Handle | 0.81 LB. (375 g) |

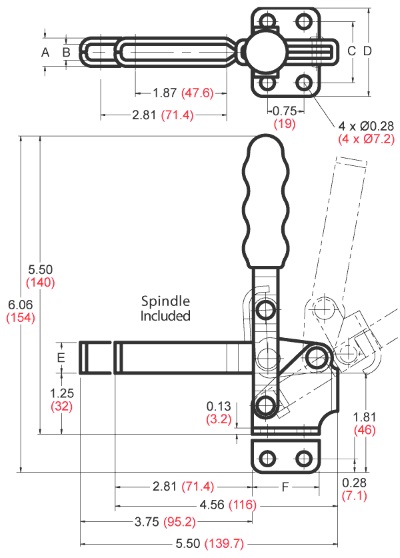

| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| ALL | 0.58 (14.7) |
0.33 (8.3) |
1.25 (31.8) |
1.81 (46) |
0.63 (16) |
1.37 (35) |
UNIT: inch (metric mm)
