Series 11002-B
Series 11002-B

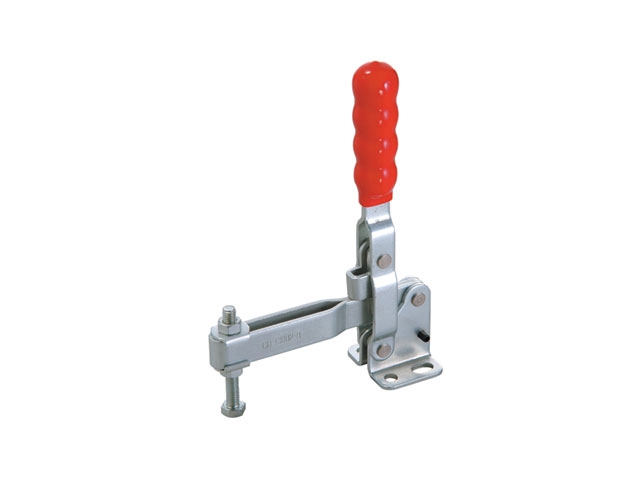

GH-13002-B has hardened bushings and removable ground pins.

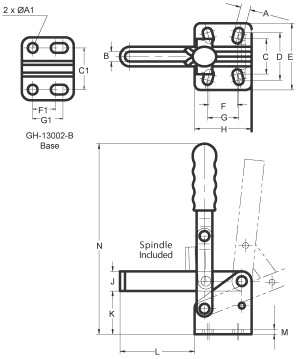

Unique hole pattern for flexibility in a wide range of mounting options.
| Model Number | Holding Capacity | Spindle Supplied | Bar Opens | Handle Opens | A | A1 | B | C | C1 | D | E | F | F1 | G | H | J | K | L | M | N | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GH-11002-B | 165 LBS. (75 kg) |
GH-SA-10118 | 96° | 66° | 0.32 (8) |
- | 0.20 (5) |
0.70 (18) |
- | 0.95 (24.2) |
1.34 (34) |
0.56 (14.3) |
- | 0.63 (16) |
1.14 (29) |
0.39 (10) |
0.87 (22) |
1.50 (38) |
0.10 (2.5) |
3.82 (97) |
0.28 LB. (128 g) |
| GH-12002-B | 330 LBS. (150 kg) |
GH-SA-14134 | 108° | 70° | 0.32 (8) |
- | 0.25 (6.4) |
1" (25.4) |
- | 1.06 (27) |
1.65 (42) |
0.50 (12.7) |
- | 0.75 (19) |
1.38 (35) |
0.51 (13) |
1.22 (31) |
1.73 (44) |
0.13 (3.2) |
5.63 (143) |
0.37 LB. (170 g) |
| GH-13002-B | 550 LBS. (250 kg) |
GH-SA-56212 | 106° | 67° | - | 0.32 (8) |
0.35 (8.8) |
- | 1.32 (33.5) |
- | 2.01 (51.1) |
- | 0.75 (19) |
1" (25.4) |
1.69 (43) |
0.75 (19) |
1.38 (35) |
3.94 (100) |
0.13 (3.2) |
7.72 (196) |
0.84 LB. (380 g) |
UNIT: inch (metric mm)
