B4 Foldable Revolving Handles
B4 Foldable Revolving Handles
Handle Material: Thermoplastic
Hardware Material: Carbon Steel / Stainless Steel
Finish: Chrome Plated
• This handle can be folded away as required. To change from the vertical to horizontal position, pull the spring loaded handle out and fold away.
• The handle comes in two forms, with female and male threads.
• Female thread only - to prevent the head from turning, the head should be pinned down with a 3mm roll pin (std. accessory).

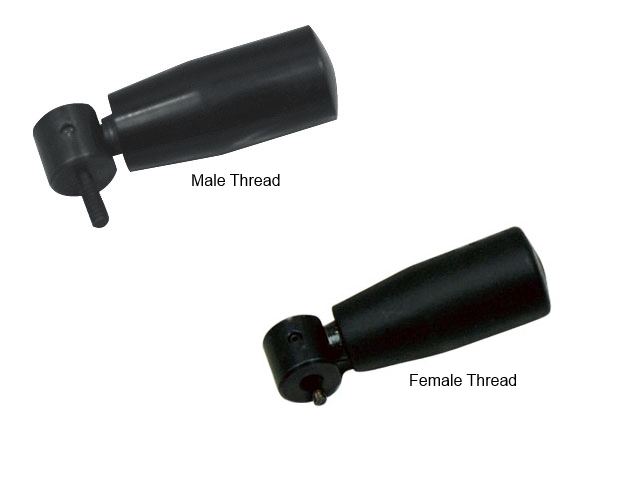

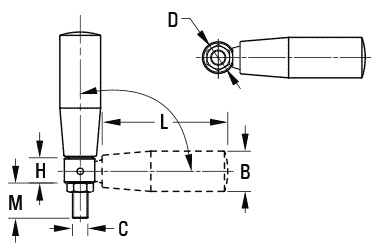

Male Thread
| Part No. | L | B | C | D | H | M | |
|---|---|---|---|---|---|---|---|
| Carbon | Stainless | ||||||
| B4-2B | B4-2BS | 2.00 | 7/8 | 1/4-20 | 0.630 | 1/2 | 5/8 |
| B4-4B | B4-4BS | 2.50 | 15/16 | 5/16-18 | 0.780 | 5/8 | 3/4 |
| B4-6B | B4-6BS | 3.15 | 1" | 3/8-16 | 0.780 | 5/8 | 7/8 |
Female Thread
| Part No. | L | B | C | D | H | M | P | R | |
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Stainless | ||||||||
| B4-2A | B4-2A-SS | 2.00 | 7/8 | #10-24 | 0.630 | 5/8 | 5/32 | 0.197 | 0.158 |
| B4-4A | B4-4A-SS | 2.50 | 15/16 | 1/4-20 | 0.780 | 25/32 | 7/32 | 0.276 | 0.197 |
| B4-6A | B4-6A-SS | 3.15 | 1" | 1/4-20 | 0.780 | 25/32 | 7/32 | 0.276 | 0.197 |
